Furnace Construction
| - High-purity fibrous alumina insulation for energy saving - 30% less power consumption than other brands.

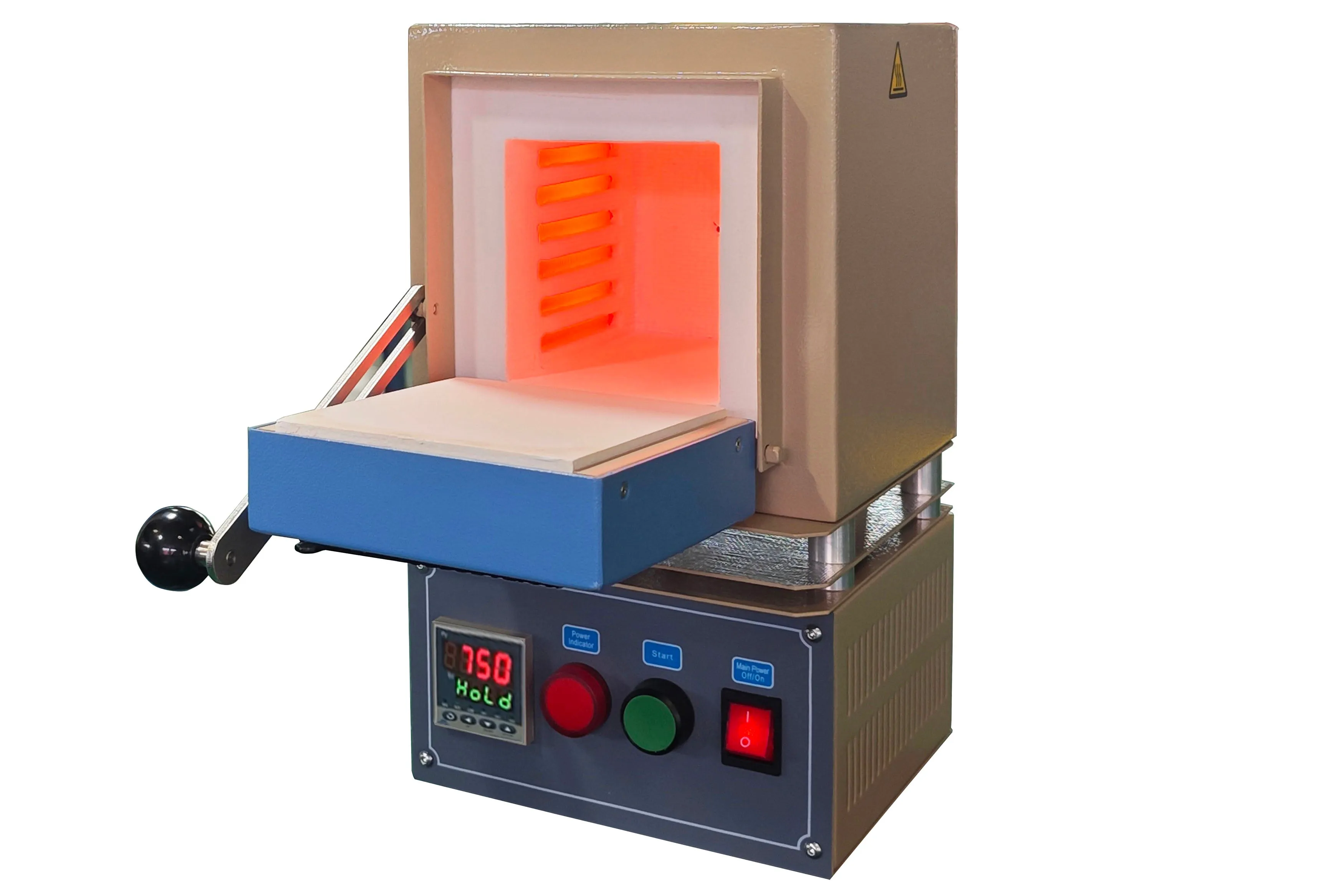

- Drop-down design of the door for easy and safe sample loading with automatic power-off if the door is opened
- (Optional) Two 8 mm diameter hose barb connectors (gas inlet and outlet) (see pic left) in the furnace back panel are available at extra cost ($99 for both connectors). Check the option box. Note: Self-Installation is required.
|
Optional Top Opening | - If the working temperature is> 800oC, suggest adding a protection cover as pic. 1, at extra cost.
- Optional Top Opening port is available at extra cost, please contact MTI for more information.
Pic.1 Pic.2 Pic.3 Pic 4 |
Sintered Mullite Plate
| - One sintered Mullite plate is included for placing the sample in the chamber. (Pic.1)
- Extra sintered Mullite plates and alumina crucibles can be ordered for stacking the samples. (Pic.2)
Pic.1 Pic.2 |
Power | - 110V version: 950 W (15A Fuse) ( power cord is included. Plug: NEMA 5-15P)
- 220V version: 1.2KW(10A Fuse) (power cord is included without a power plug.)
|
Operating Temperature | - 200 °C - 1000°C max continuously
- 1100°C max for an hour
- Note: If you would like to use the furnace at 35 - 200 °C as a drying oven at extra cost, please let us know in advance to present another set of PID parameters.
|
Max. Heating Rate | |
Temperature Controller | - PID automatic control and auto-tune function.
- 30 programmable segments for precise control.
- Built-in protection for the over-heating and broken thermocouple.
- Large digital control panel (48 x 48 mm) for easy operation.
|
Temperature Accuracy | /- 1 °C from 200 °C to 1100 °C |
Heating Elements | Fe-Cr-Al Alloy doped by Mo |
Thermocouple | K type |
Compliance
| - CE Certified
- NRTL (UL61010) or CSA certification is available upon request at extra cost.
- A protective cover and a fan will be installed on the furnace with NRTL Certification, please click the picture on the left for more detail.
|
Application Notes
| - With its small footprint, low weight, and low power requirement, it can be easily accommodated in a glove box and heated under inert gas. Please click pic.1~4 to see the different applications of this muffle furnace.
- Please click to order the Replacement Furnace Heating Chamber Module.
Pic.1 Pic.2 Pic.3 Pic4 |
Warnings | - Toxic or explosive gasses are not recommended for use with this furnace without necessary safety controls and supervision. Please put furnace into fume hood for better safety (Click Pic.1)
- Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
- You shall place the sample into a crucible as below. Never place the sample on the chamber bottom directly.
|
