Furnace
| - Three heating zone: 150mm 300mm 150mm with independent temperature control, which is easy to create the thermal gradient.
- Max. Working Temperature: 1200ºC (< 60 minute)
- Standard Working Temperature: 1100ºC (continuous)
- Power: 208V- 240V AC, 50/50Hz, Single phase
- 5000W Max.
|

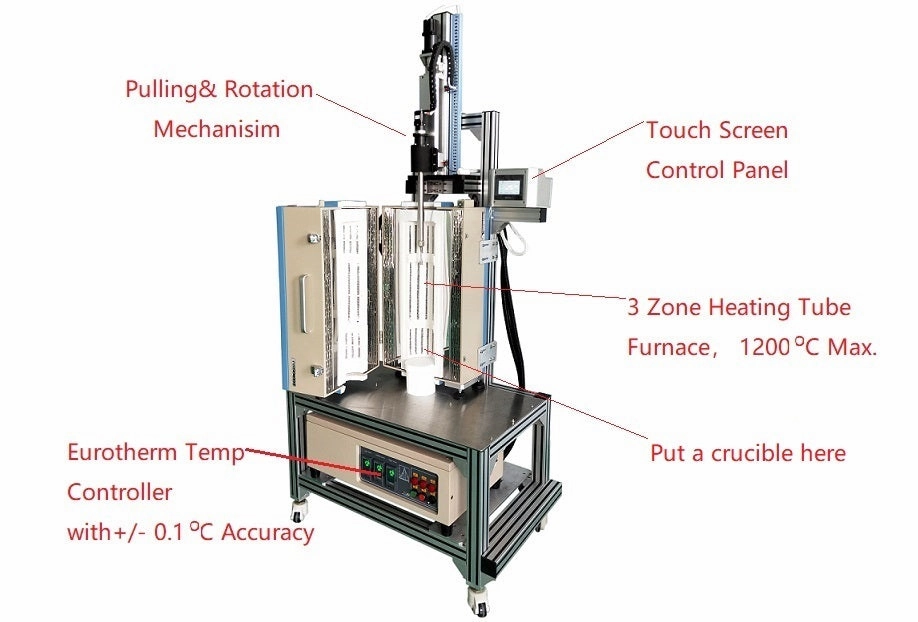

Control Panel | - PLC touch screen control panel for controlling temperature, pulling speed, rapid downward speed and rotation speed of pulling rod
- Temp. Controller: 8 steps programmable and auto PID control with /- 0.1ºC accuracy (Eurotherm inside)
- Heating Rate 0~10ºC / min (suggestion at =< 5ºC)
- Pulling Speed: 0.8-50mm/h adjustable
- Downward speed: 40 mm/minute fixed
- The rotation speed of the Pulling rod: 0.1-23 RPM adjustable
|
Pulling Range | |

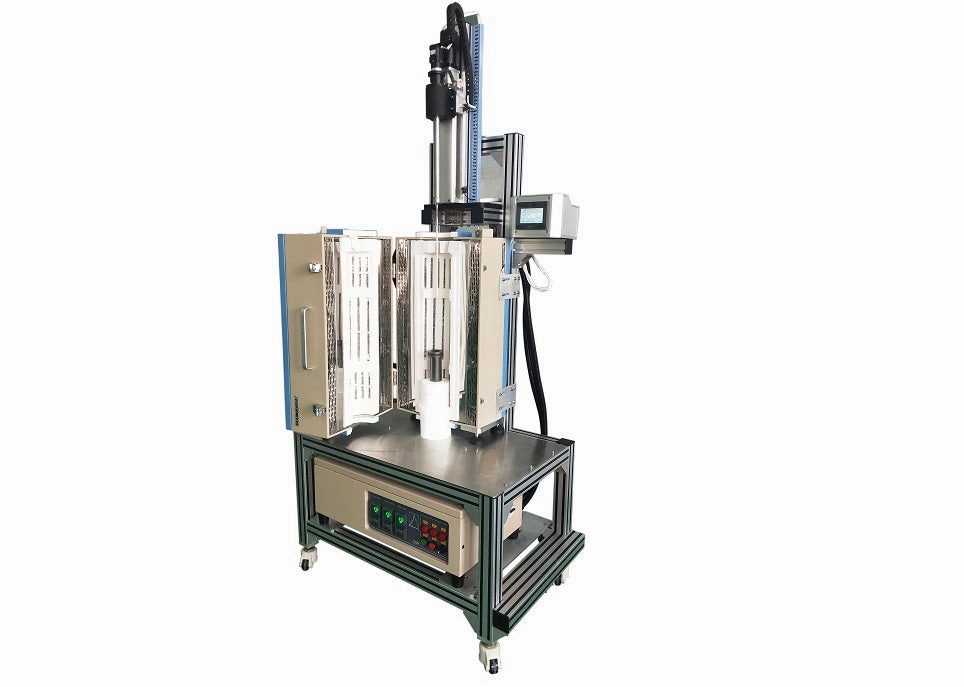

Heating Chamber | - 135 m Dia Splittable with max. 80 mm crucible without sealed tube
- 600 mm in Height
- Kathal-resistant heating coil
- 5 pcs K type thermal couple
- Optional
- Vacuum-sealed quartz tube up to 5" OD is available at the extra cost
- The bottom lifting mechanism is available upon request at the extra cost
|
Temperature Controller | - Built-in five Eurotherm Temperature Controllers with /- 0.1ºC accuracy
- 24 segment programmable
- PC control software is included
|
Furnace Dimension | Please click the picture to review |
Warranty | - One-year limited warranty (Consumable parts such as processing tubes, o-rings, and heating elements are not covered by the warranty, please order the replacement in the related products below.)
|
Compliance | - CE Certified
- NRTL or CSA certification is available upon request at extra cost.
|
Operation Video
|
|
