- 【ASPM Technology】BME280 is a small package and low-power digital composite sensor of Advanced Porous SiliconMembrane technology, which can measure ambient temperature, humidity and atmospheric pressure.
- 【Sensor Features】The humidity sensor has fast wake up and response time, high precision and wide temperature operating range; The pressure sensing element is a piezoresistive low noise, high precision and high resolution absolute atmospheric pressure sensing element. The temperature sensing element has the characteristics of low noise and high resolution, and the temperature value can be self-corrected by temperature compensation for humidity and air pressure.
- 【Range & Accuracy & Resolution】Temperature measurement range :0℃~65℃ Temperature measurement error :±0.5℃ MAX±1℃; Resolution 0.1℃ Relative humidity measurement range :0%~100% Humidity response time: greater than 1s relative humidity measurement error :±2%; Humidity lag :±1%; Resolution 0.8% Pressure measurement range :300~1100hPa(HPa) Pressure measurement error :±1hPa resolution 0.18Pa.
- 【Usage Instruction】The module determines the device address through SD0 pin in 12C mode. The SDO GND low-level slave address is 1110110(0x76), and the default of this module is 0x76. High level slave address 1110111(0x77).
- 【Applications】Humidity sensors and air pressure sensors can be independently enabled/disabled by configuring the sample rate register, the sample rate of the sensor can be set, ideal for mobile devices with limited space, such as smart phones, tablets, smart watches and wearables, weather forecasts, vertical speed indicators, flight control devices, indoor and outdoor navigation, smart home devices.

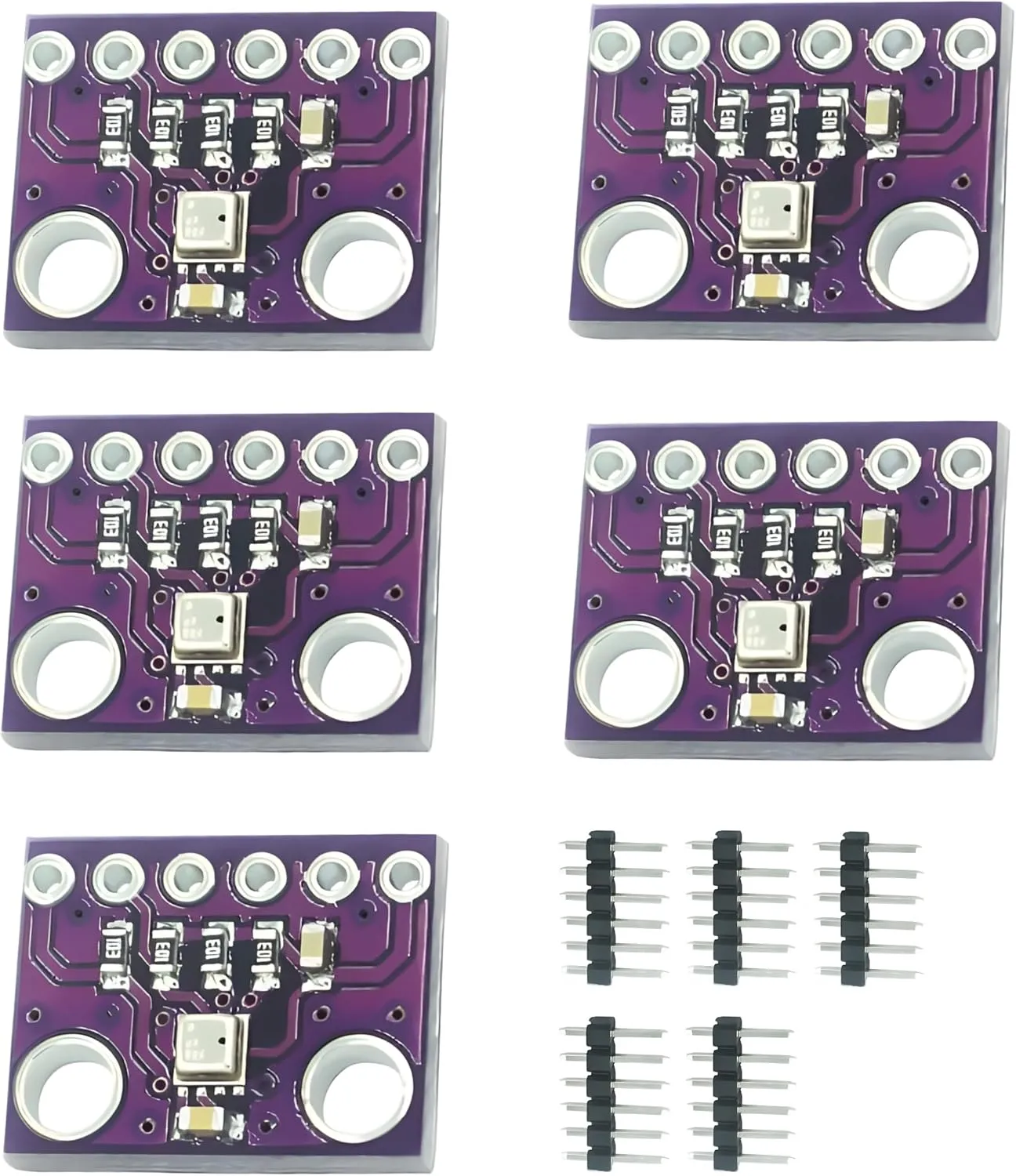

Description:ME-BME280 is a Breakout Board featuring a Temperature, Humidity & Pressure Sensor. The board has selectable I2C address jumper (solder link GS2), I2C pull-up resistors, 7 pin header 2.54mm, and two mounting holes 3.5mm.Default setting of the board; single power rail Vdd=Vdd_IO (solder link GS1), pull-ups resistors (R2, R3) 10k, protocol selector resistor 0ohm (R1), decoupling capacitors 0.1uF on both power supply pins Vdd & Vdd_IO.If you connect board to both power rails VDD_IO 1.8V and VDD 3.3V be sure to remove the power rail jumper GS1.BME280 Features:- Package 2.5 mm x 2.5 mm x 0.93 mm metal lid LGA- Digital interface I2C (up to 3.4 MHz) and SPI (3 and 4 wire, up to 10 MHz)- Supply voltage VDD main supply voltage range: 1.71 V to 3.6 V VDDIO interface voltage range: 1.2 V to 3.6 V- Current consumption 1.8 uA @ 1 Hz humidity and temperature 2.8 uA @ 1 Hz pressure and temperature 3.6 uA @ 1 Hz humidity, pressure and temperature 0.1 uA in sleep mode- Operating range -40 85 C, 0100 % rel. humidity, 3001100 hPa- Humidity sensor and pressure sensor can be independently enabled/disabledThis sensor is great for all sorts of weather sensing and can even be used in both I2C and SPI.This precision sensor is the best low-cost, precision sensing solution for measuring barometric pressure with 1 hPa absolute accuraccy, and temperature with 1.0C accuracy. Because pressure changes with altitude, and the pressure measurements are so good, you can also use it as an altimeter with 1 meter accuracy.Package included:5pcs GY-BME280-3.3 High Precision Atmospheric Pressure Sensor Altimeter Temperature Humidity Sensor Module
