- It can be wildly used to wireless remote control, somatosensory devices, RFID, NFC, smart grid, smart home, wireless audio etc.
- 5PCS NRF24L01 8 Pin Socket Breakout Adapter Board: On-board AMS1117-3.3 chip, a simple socket breakout board which is for 8-Pin NRF24L01 wireless module
- 5PCS NRF24L01 PA LNA RF Transceiver Module with SMA Antenna: Built-in 2.4Ghz antenna: available software to set the address, only received local address when output data(Provide interrupt instruction), can be directly connected to a variety of microcontrollers
- RF24L01 Breakout Adapter: Small power on SMD LED indicator, On-board 3.3V voltage regulator, which accepts 5V power supply input and provides 3.3V for the attached "nRF24L01 " module.

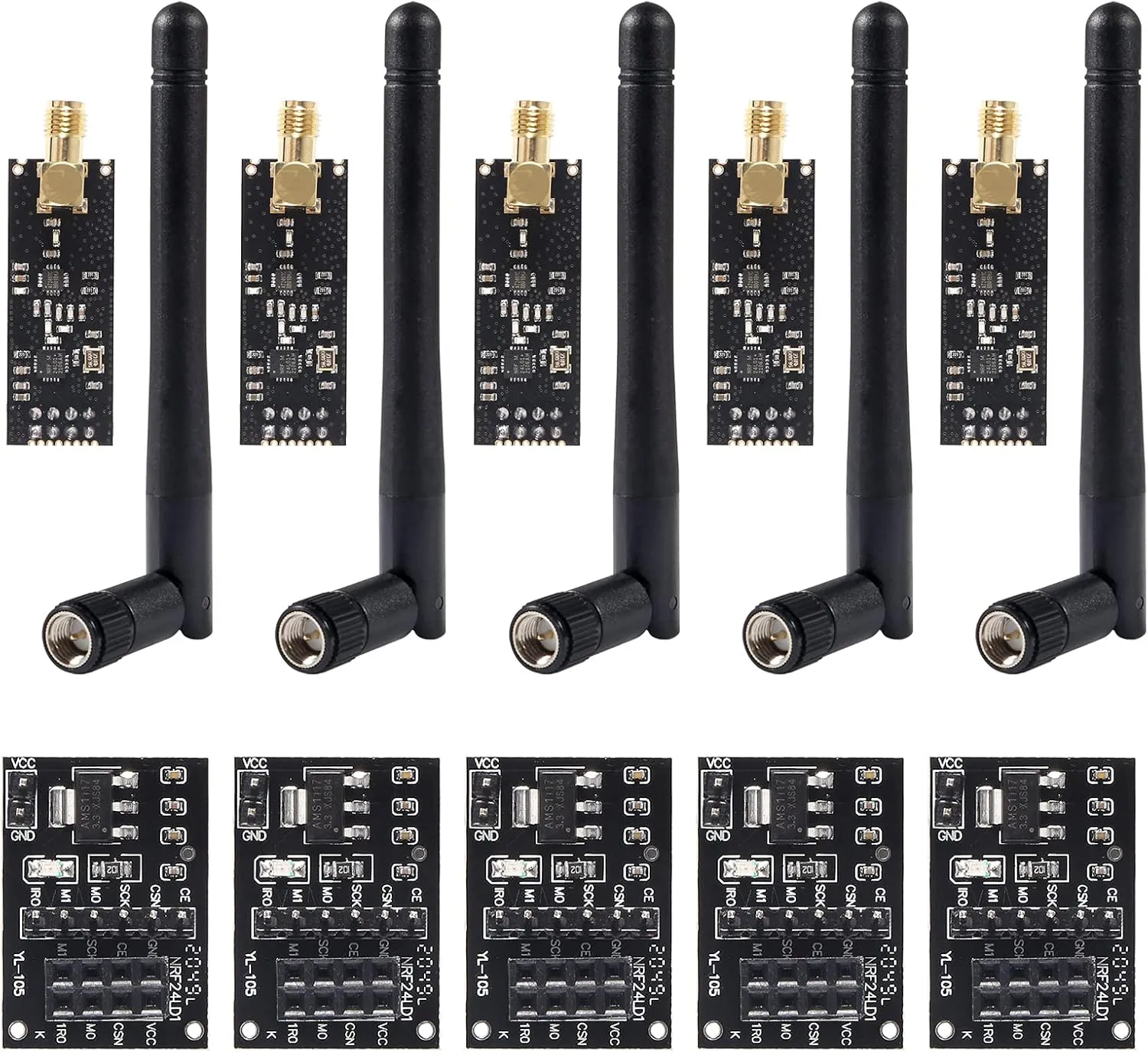

- The packing list includes: 5 * NRF24L01 PA LNA Wireless Transceiver RF Transceiver Module; 5* SMA Antenna 2.4G 1100m; 5 * NRF24L01 Breakout Adapter
Product Description
PA gain:20dB
PA gain:10dB
Accept agility 2Mbps mode:-92dBm
Operating voltage： 3~3.6V
Accept agility 1Mbps mode: -95dBm
Accept agility 250kbps mode: -104dBm
Output power： 20dBm
Transmit mode working current：115mA
cceptance mode work current：45mA
Power-down mode current：4.2uA
Working temperature：-20~70℃
"NRF24L01 " Wireless Module:
Pin Quantity：8Pin
On-board ：AMS1117-3.3 chip.
Compatible: for Arduino and Raspberry Pi
Voltage Regulator Input Voltage: 4.8V ~ 12V
"NRF24L01" Module:
PA Gain：20dB
LNA Gain：10dB
Frequence: 2.4GHz~2.5GHz
Range: 800 meters line of sight
Multi-frequency: 125 frequency
Transmit Operating Current（Max）：115mA
Receiving Operating Current（Max）：45mA
Board dimensions: 40.7mm x 15.5mm x 12.2mm
Operating Voltage: 3 ~ 3.6V （Recommended 3.3V）
Package Including：
5*NRF24L01 PA LNA Wireless Transceiver RF Transceiver Module
5*SMA Antenna SMA Antenna 2.4G 1100m
5* NRF24L01 Wireless Module Breakout Adapter
