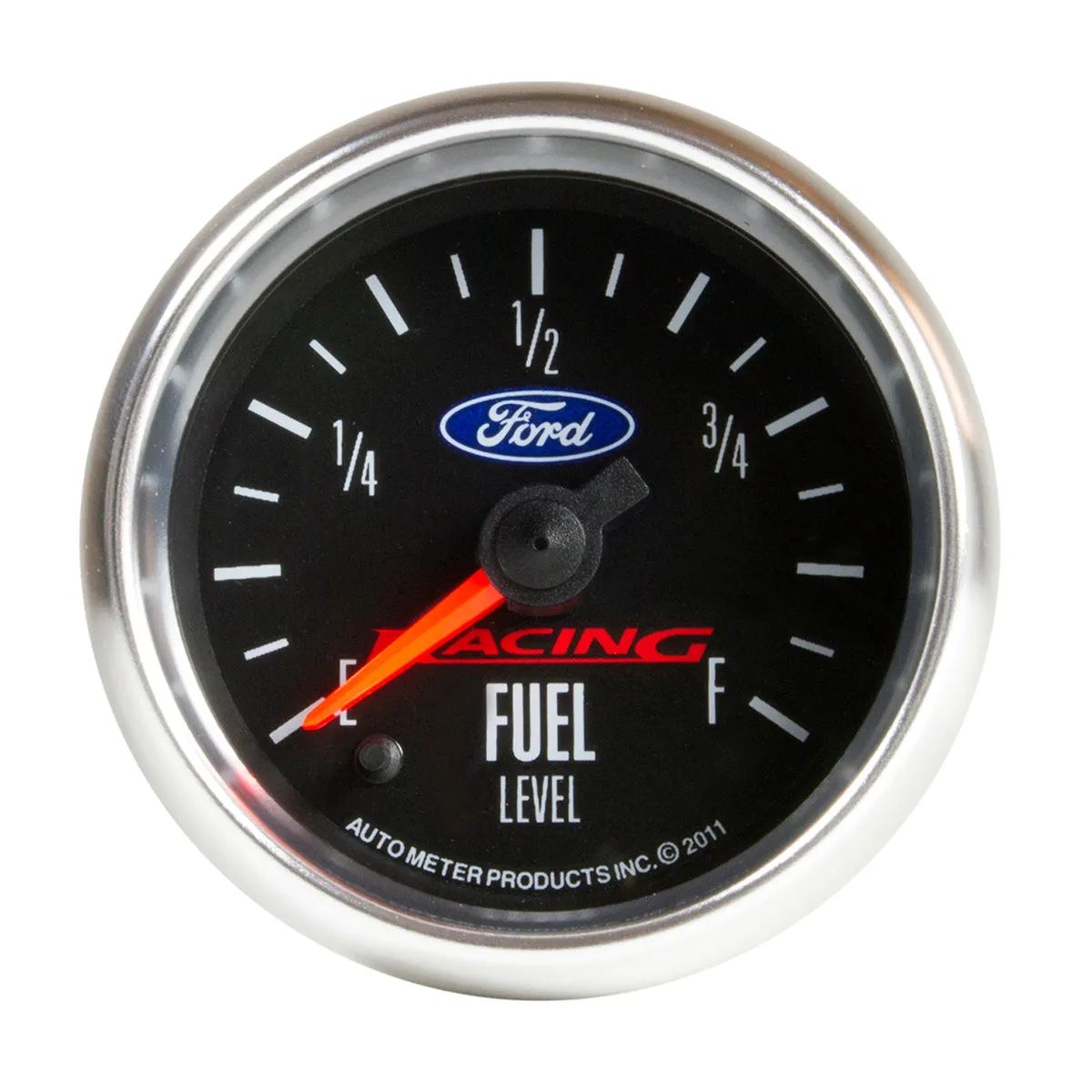

AutoMeter Products 2-1/16 in. FUEL LEVEL, PROGRAMMABLE 0-280 O, FORD RACING

880400

GAUGE FUEL LEVEL 2 1/16" 0-280O PROGRAMMABLE FORD RACING

Modern white LED through-the-dial lighting provides clear visibility during nighttime use; Gauge kit includes 20 ft. wiring harness mounting hardware and detailed instructions for installation; Adjustable Scale w/ 7 preset ranges for common vehicle types (73E/10F 16E/158F 0E/30F 0E/90F 240E/33F 107.5E/7F 131E/12F); User definable resistance setting programmable anywhere between 0-280 ohms; 12 and 16 volt compatible compatible with nearly every street car or race car electrical system; Autometers Race Proven Digital Stepper Motor Electric Instruments Provide Unmatched Accuracy Which Is Further Increased By Utilizing A Self Calibration Sequence During Power Up

Traditionally Paring The Proper Fuel Level Level Gauge To The Application Could Be A More Difficult Task Than It Needed To Be. The Autometer Digital Stepper Motor Fuel Level Gauge Drastically Simplifies The Process With Its Easily Configurable Resistance Range. With 7 Common Configurations Stored In Memory From The Factory The Vast Majority Of All Applications Are Covered. In The Instance Your Fuel Level Sender Is Not Included In These Preconfigured Ranges An Innovative Custom Calibration Mode Allows Any Sending Unit That Operates Between 0 And 280 Ohms Empty Or Full To Be Easily Paired. Our Snapshot" Programming Method Will Allow You To Capture The Empty And Full Readings And The Gauge Does The Rest. No Matter Your Application There Simply Isnt An Easier Solution For Fuel Level Monitoring Available On The Market. A Direct Plug In Wiring Harness Is Included For Ease Of Installation.
