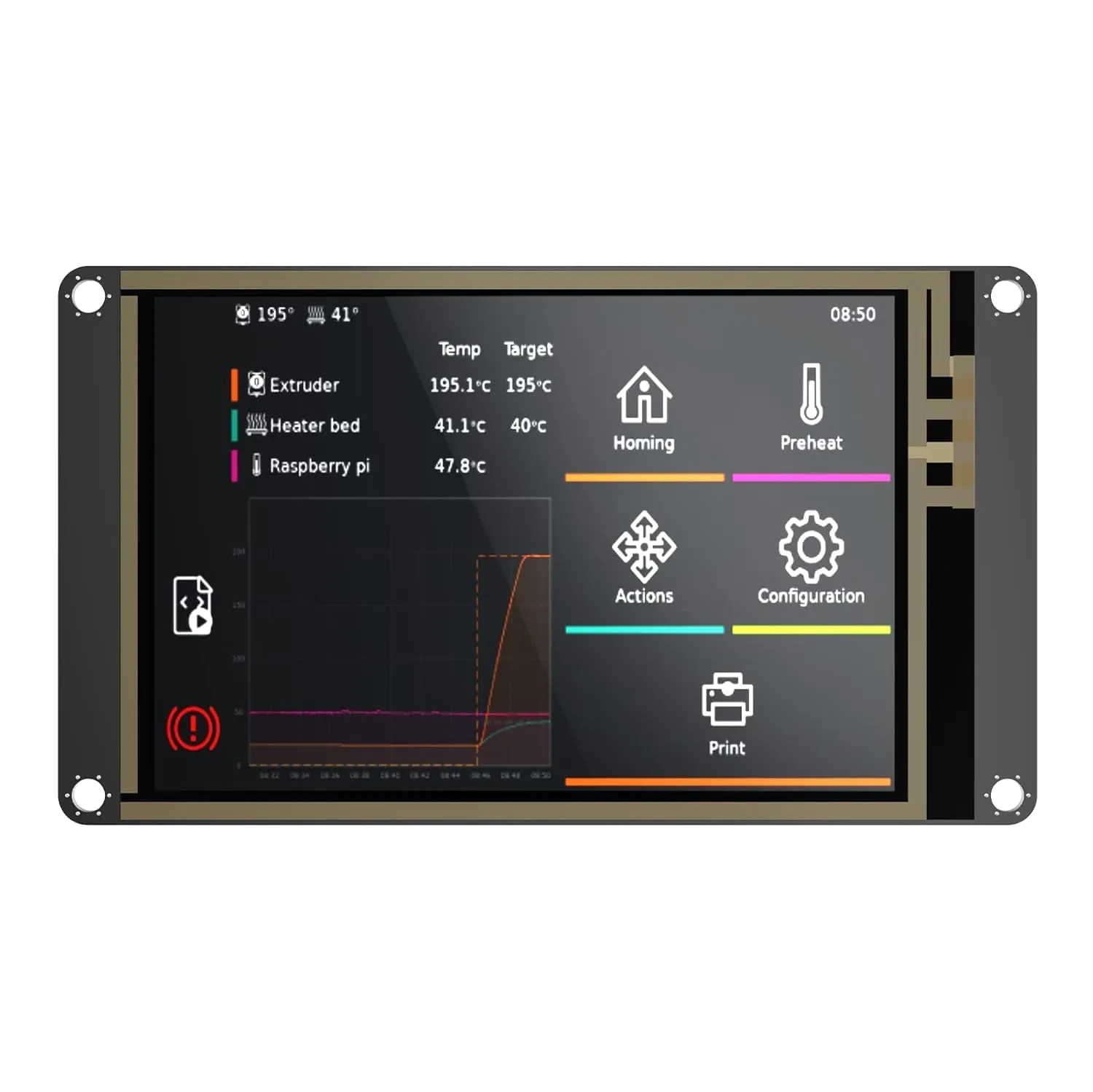

- 【TFT35 SPI Touch Screen】BIGTREETECH TFT35 SPI display is a resistive touch screen that controlled by the motherboard chip. Its LCD display is supported by SPI and touch function is supported by I2C. Appearance size: 98*56mm, power input : 5V.

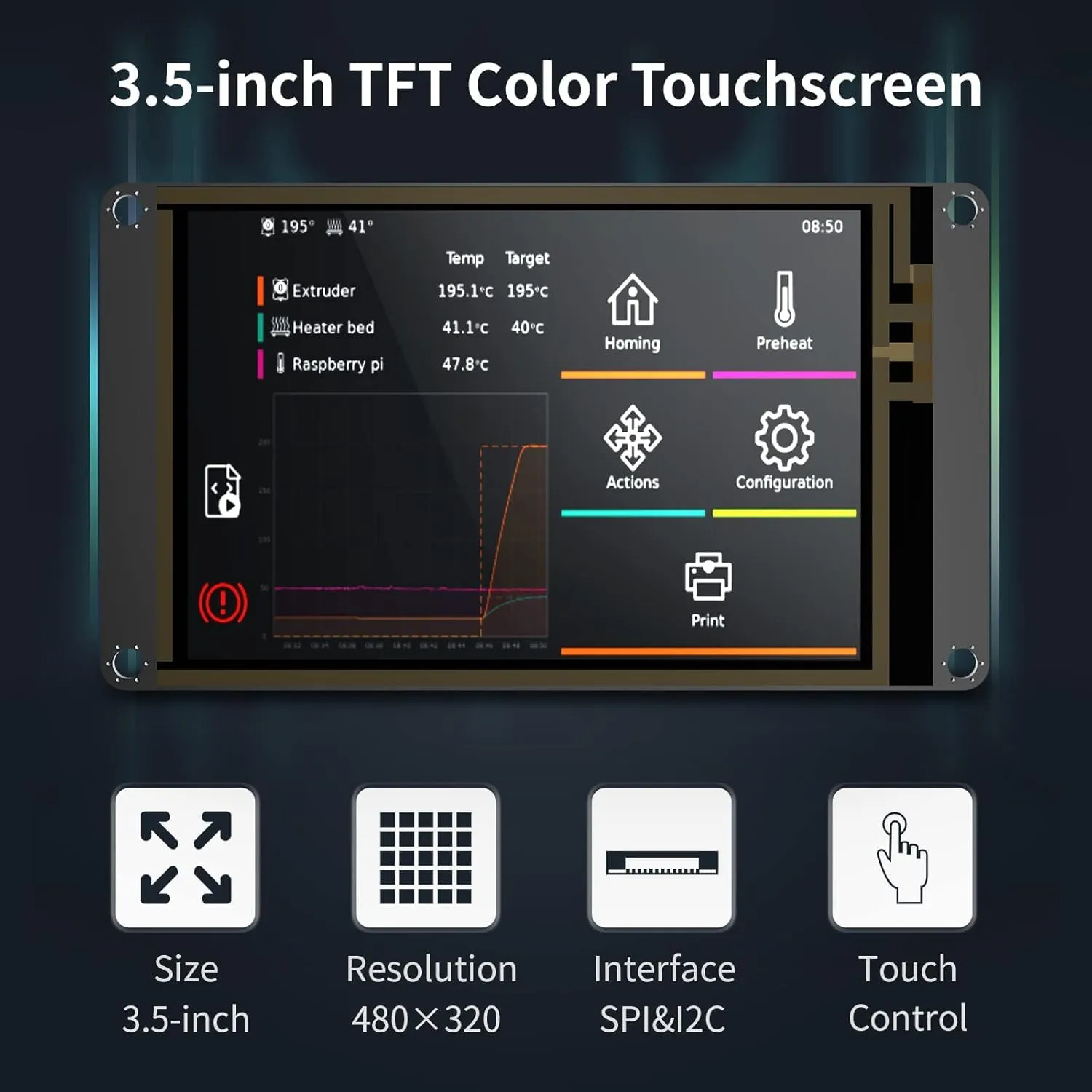

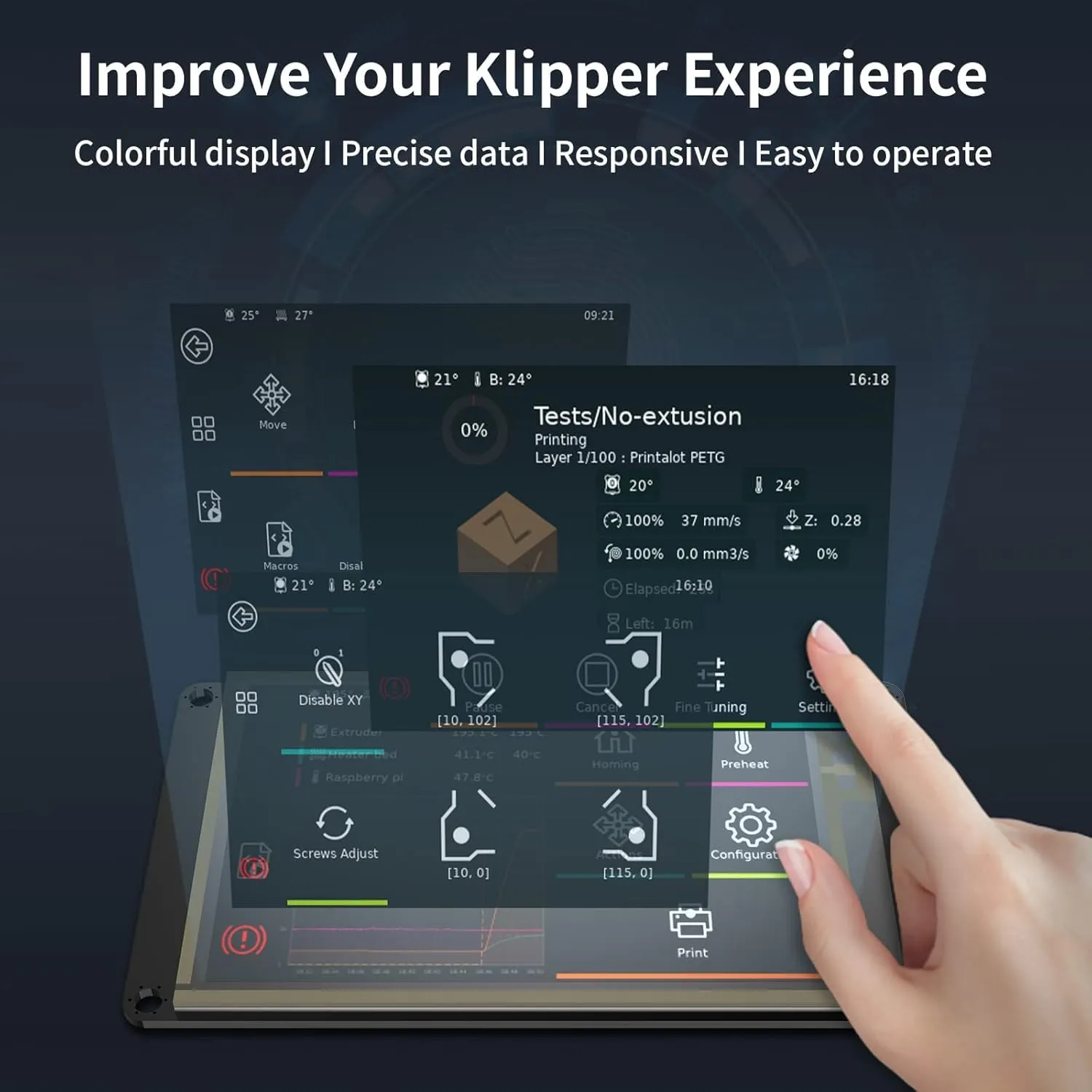

- 【Responsive & Easy Operation】TFT35 SPI is a 3.5 inch full-color screen with ultra clear display and responsive touch. It is connected to the motherboard through the FPC cable, simple and convenient to use, greatly improving your klipper experience.
- 【Reserved Extension Ports】Designed with XH2.54 terminal, which can communicate with the board through the terminal.

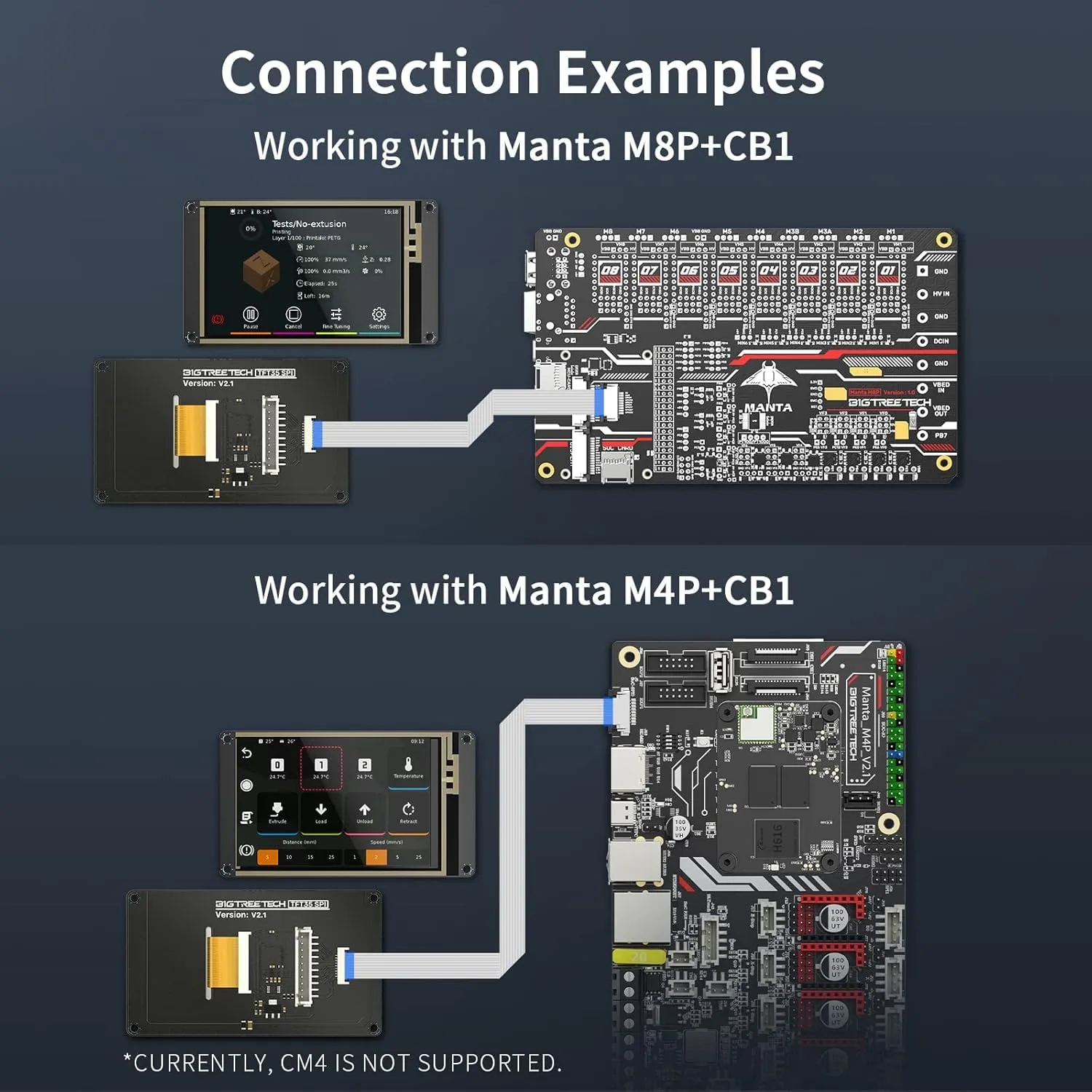

- 【Compatible with BTT CB1】TFT35 SPI touch screen is compatible with all versions of BTT CB1 core board. It can directly use with CB1 V2.0 and CB1 V2.2, and need to match up with IO2CAN expansion module when used with CB1 V2.1.
- Please let us know directly through Amazon if you have any problems about our products, BIQU customer service team are always ready to offer help!
Product Parameters:
1. Product Dimensions: 98 x 56mm
2. Input Voltage: DC 5V
3. Logic Voltage: DC 3.3V
4. Screen Size: 3.5-inch
5. Resolution: 480x320
6. Driver IC for SPI Display: ILI9488
7. Driver IC for Touch: NS2009
- Package Dimensions : 4.53 x 3.03 x 1.61 inches; 2.89 ounces
- Date First Available : January 11, 2023
- Manufacturer : BIQU
- Country of Origin : China
