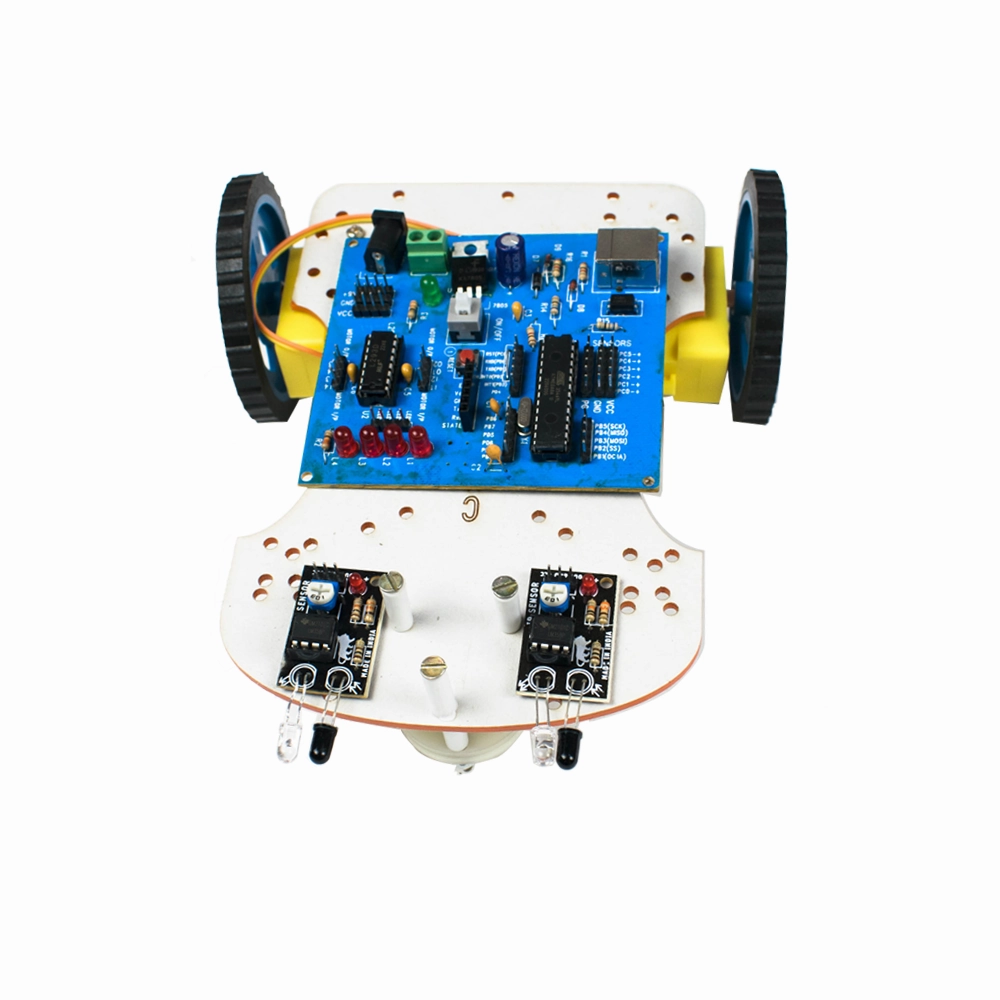

This Three Wheel DIY Programmable IR Line Follow Robotic Car Chassis Kit is the perfect mechanical platform for your robotics projects. All of the hardware and mechanical components needed to make your robot are included in this kit, including, an IR Sensor, Motor Driver, motors, chassis, nuts & bolts, and more. Simply connect your electronics (IR Module to Programming Board) and connect the battery to your robot. It has a big surface area with predrilled holes for installing sensors and electronics according to your needs. This robot chassis allows you to quickly prepare your mechanical platform.
Wheeled Robots are the most common robots because they are simple to create, maintain, and operate.
For better performance, we have selected good quality motor, wheel, and platform combinations. Matching wheels and mounting hardware are included with each motor.
Features
- Easy and Safe
- Best Learning Kit
- Encourage creative thinking
- Best for beginners
Specifications
| Wheel Diameter | 72mm |
| Chassis Size | 180mm*115mm |
| Source/Battery Required | Yes |
| Battery Included | No |
| BO Motor L-Shape ( DC Plastic Gear Motor) Speed | 150rpm |
| IR Sensor | Yes |
| Motor Driver Board Included | Yes |
| Programmable | Yes |
| USB Included | Yes |
| Country of Origin | China |

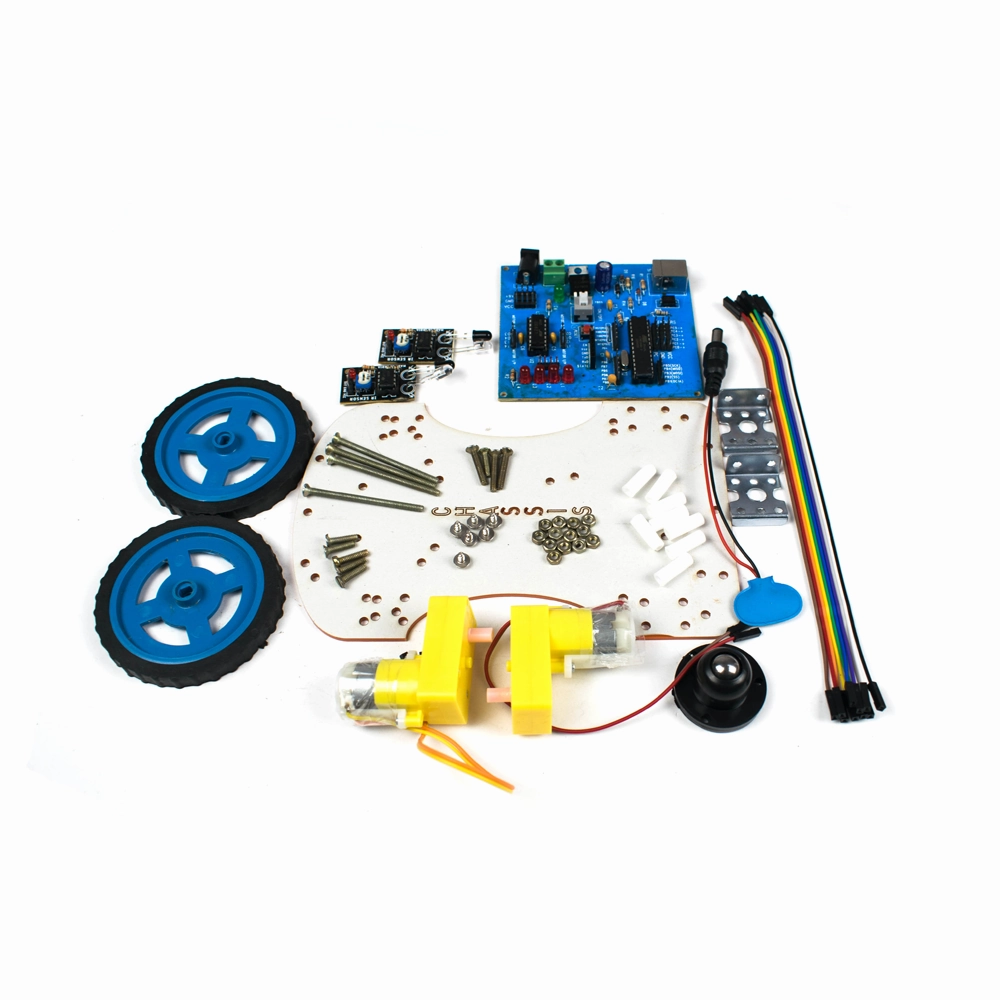

Package includes:
- 1 x Acrylic Car chassis.
- 2 x BO L-Shape Motor
- 2 x Wheel (Tyre)
- 1 x Caster (or Castor) Wheel
- 1 x Programming Board with Motor Driving
- 10- Female to Female Wire
- 2 x IR sensor
- 1 x USB cable
- 1 x battery Jack Connector
- 1 x Screw Driver
- All necessary screws and nuts
