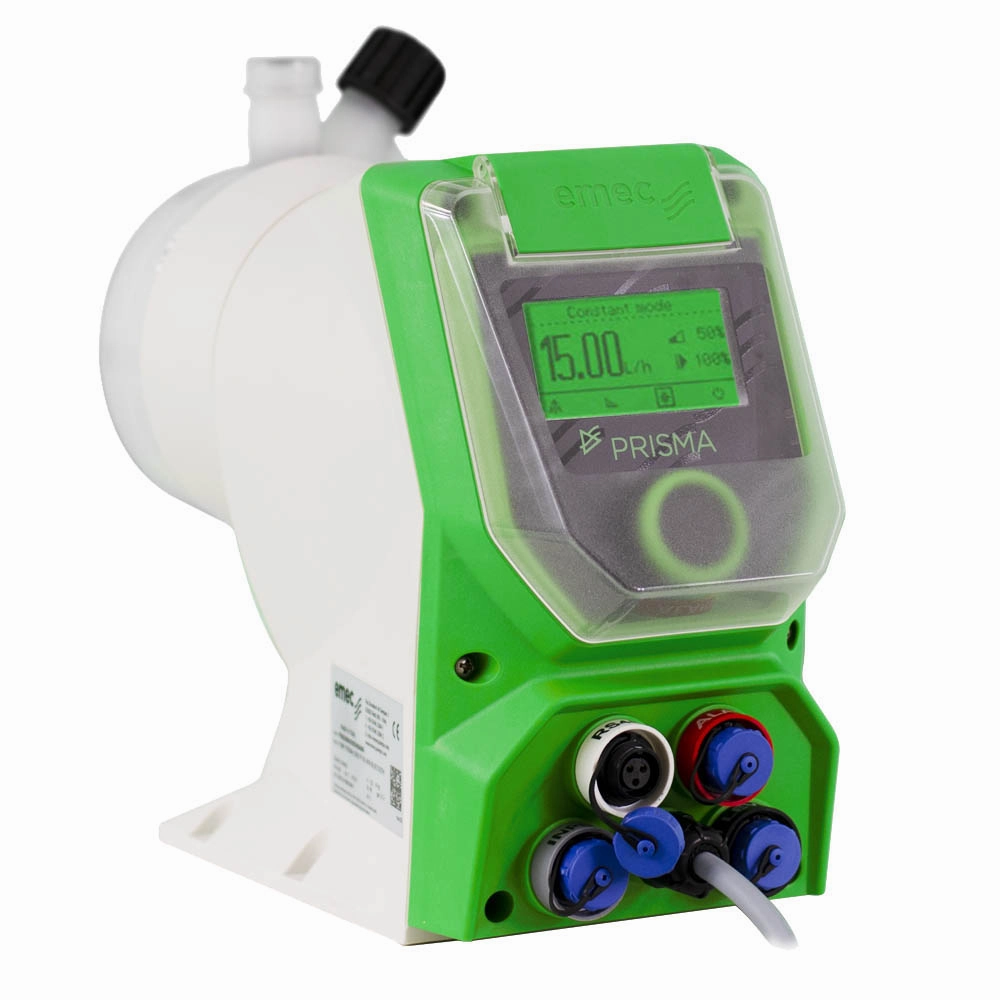

EMEC PRISMA 16 7.5 Stepper Motor Intelligent Digital Dosing Pump (7.5LPH/16BAR)
| DOWNLOAD INSTRUCTIONS | DOWNLOAD CHEMICAL COMPATABILITY |
emec PRISMA Stepper Motor Smart Metering Pumps are a top end product without the high end price tag. They are on par with the most prominent brands in the market and have an incredible turndown of 4800:1 with continuous feed of product. With so many features too numerous to mention, they will suit any dosing application whilst running much quieter than a solenoid pump.
FEATURES
- Stepper Motor Design ensures constant chemical delivery
- FP = for PVDF head, Viton seals & CE Balls
- Includes foot valve, Injection valve, 2m of Suction tube and 2m of Delivery tube

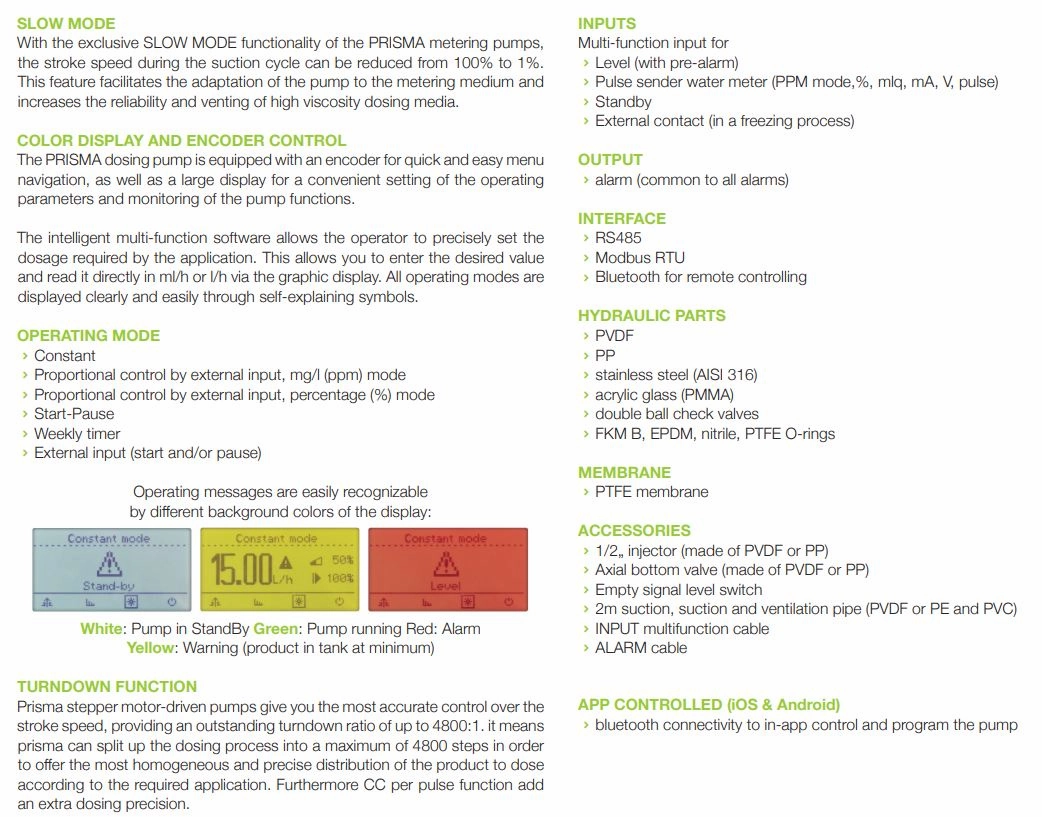

- Programmable modes: Constant, Pulse with Divide/Multiply, PPM, Percentage, Batch, Volt, mA

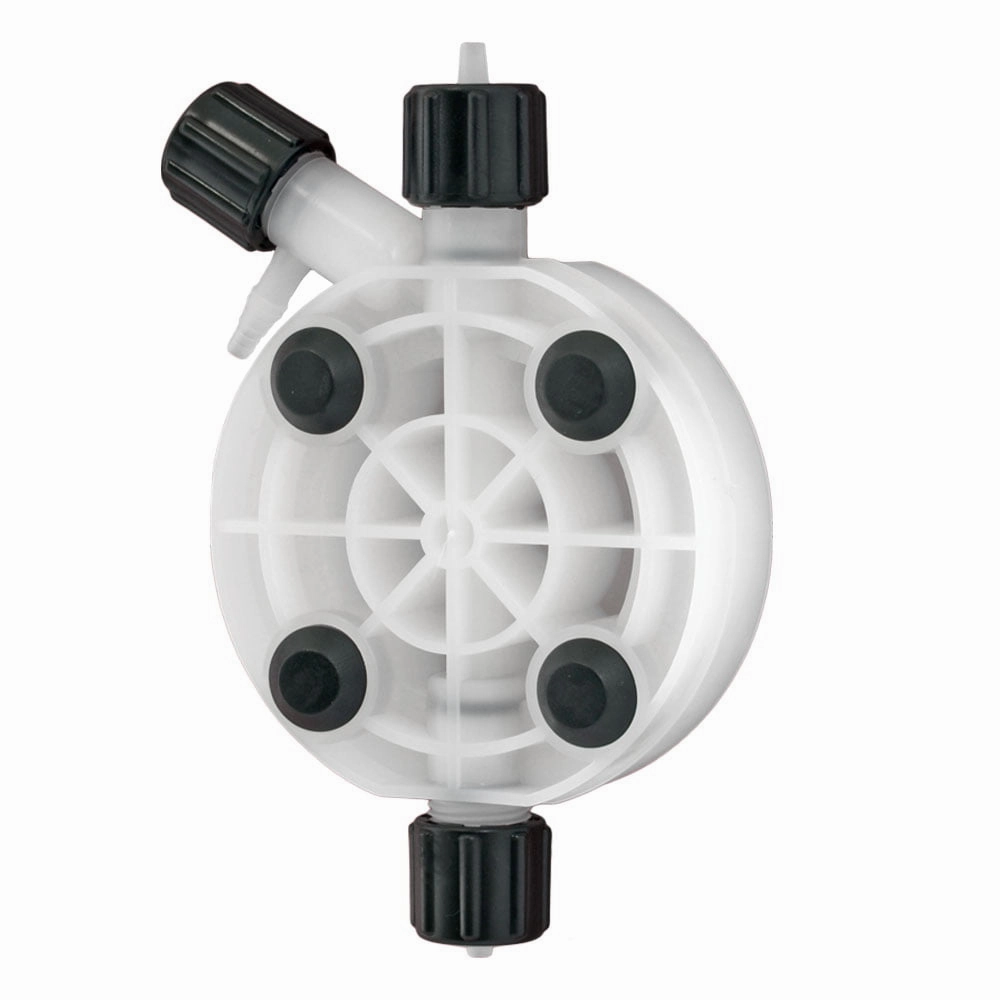

- Standard head: PVDF with Viton Seals
- Head for Caustic: PP with EPDM seals and SS Balls
- High Viscosity heads for Polymer: PRISMA LPV models only (8000 cps max.)
- Reliable & accurate dosing

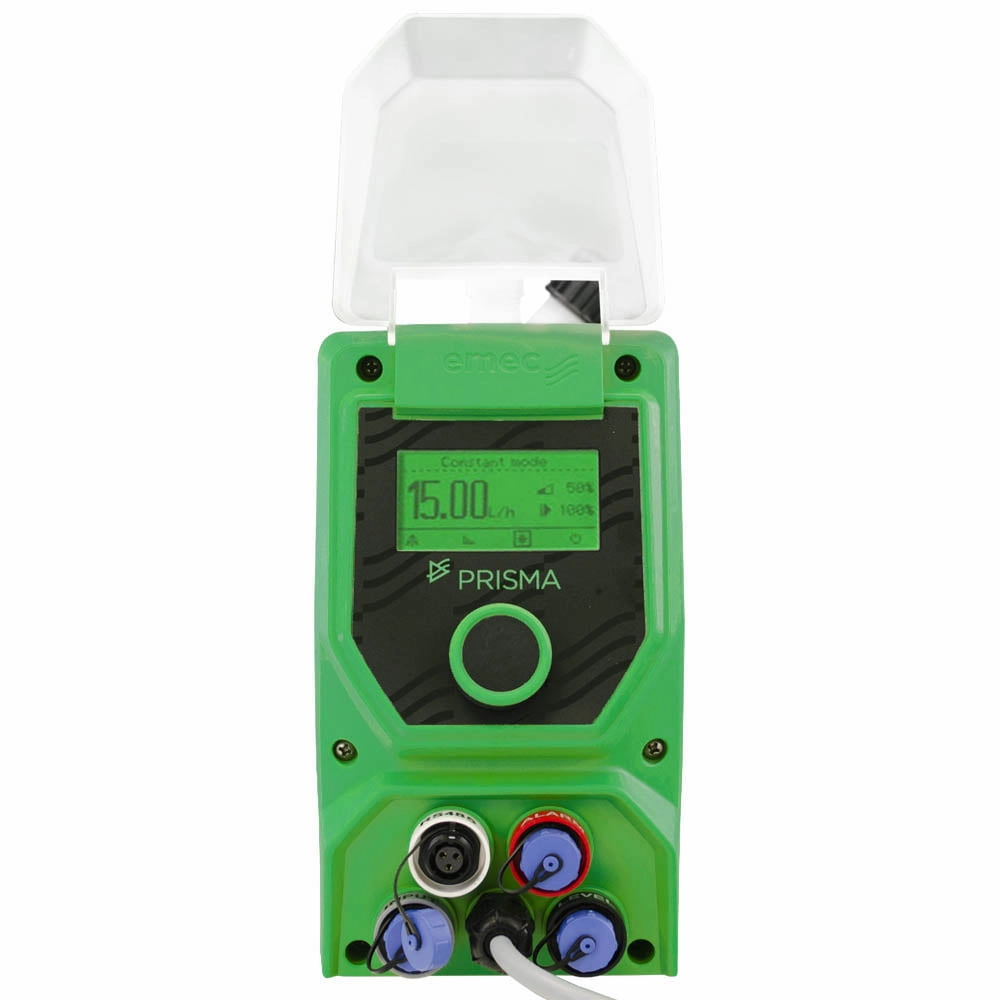

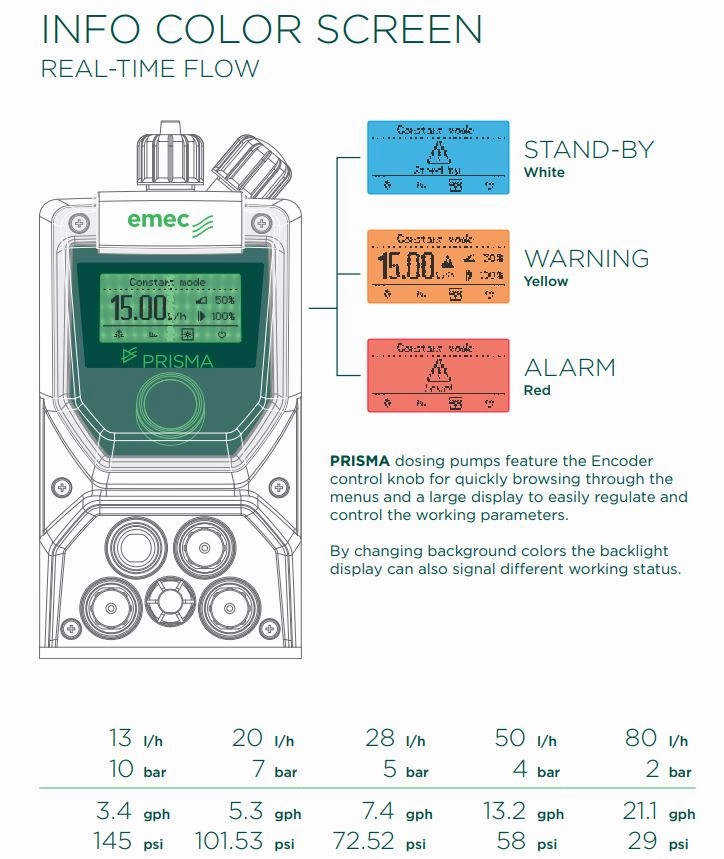

- Backlit Multi-colour LCD Display (normal / warning / alarm)
- Turndown 4800:1
- Programmable alarm relay output
- Pump enable/standby input
- MODBUS RTU optional
- Float on foot valve stops pump dosing when chemical level in tank is low
- Double ball check valves in foot valve, suction & discharge valves
- Long lasting Solid Teflon diaphragm
- Wall Mount with optional Front or Side Mount Bracket
SPECIFICATIONS
| Configuration | Foot Mount, Wall Mount with Optional Bracket |
|---|---|
| Variables Measured | Level |
| Inputs | 4-20mA, Pulse, Standby Dry Contact, Tank Level Dry Contact, Water Meter Make-up Pulses |
| Outputs | Alarm Relay, Optional Modbus |
| Max Flow / Pressure (Head) | 13 l/hr @ 10 bar, 28 l/hr @ 5 bar, 5 l/hr @ 20 bar, 80 l/hr @ 2 bar |
| Process Connection | 1/2 inch BSP Male, 3/4 inch BSP Male |
| Materials | Ceramic Balls, EPDM O-rings & Seats, FKM B O-rings & Seats, PTFE Diaghragm/s, PVDF Head, PVDF Valve Bodies |
| Max Viscosity | 100 cps, 600 cps with optional SS balls, 8000 cps in LPV Models |
| IP Rating | IP65 |
| Install Kit Included | 16×22 suction hose, 8x12mm delivery tube & injection valve in LPV models, 4x6mm tube, injection valve & foot valve with level float, 6x8mm tube (20 l/hr) or 8x12mm tube (30 l/hr), injection valve & foot valve |
| Optional Tube Size | 1/4 inch, 3/8 inch, 5×8 or 6x9mm |
