euFIX. DIN TH35 rail adapters for Fibaro modules
Eutonomy euFIX are adapters for Fibaro modules which help you to install and maintain system which require mounting Fibaro modules inside electric rack.
Eutonomy euFIX are available for the following Fibaro modules: FGD-212, FGR-222, FGS-212, FGS-213, FGS-222, FGS-223, FGS-214 and FGS-224. All euFIX adapters are available in 2 versions: with or without buttons.
euFIX S214

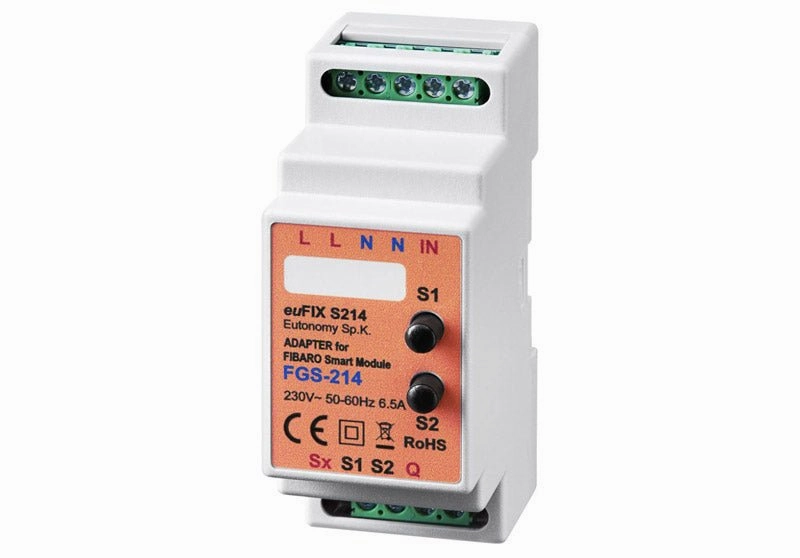

The Eutonomy euFIX S214 Adapter is used to install the Fibaro Smart Module FGS-214 module (sold separately) on DIN TH35/TS35 type rail in the electrical switchboard.
The euFIX S214 Adapter consists of the case and the base board, where the FGS-214 module is mounted. The dimensions of the case are appropriate for a standard DIN TH35/TS35 type rail.
The base board contains a set of screw terminals, where all the wires (power supply, input and output signals, control push-buttons) can be safely connected. The front panel of the case contains two diagnostics micro-push-buttons S1 & S2, which can be used to control the module, to register the module within the Z-Wave system or to remove it from the system without opening the adapter's case.
The simplified S214NP variation (available separately) does not have the micro-push-buttons.
