Double-Sided Laminating System

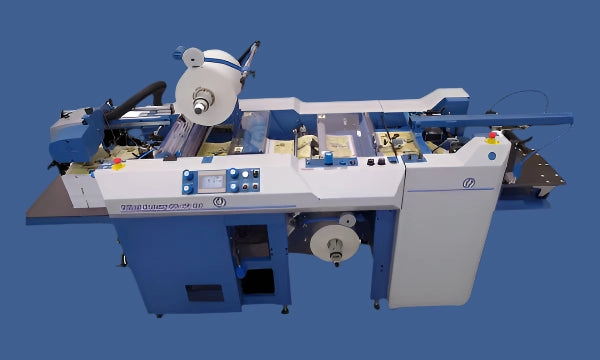

The Foliant Taurus 400 NG 4x4 Double is a compact, industrial-grade double-sided thermal laminator designed for nonstop lamination of digital and offset prints. With speeds up to 131 ft/min, this system supports automatic suction feeding, twin de-curling, bump separation, and laminates up to 4,800 sheets per hour (14” x 20”). It is ideal for production environments requiring high speed, precision, and sheet flexibility, while maintaining a small footprint.

Key Features

🔷 Double-Sided Thermal Lamination – Laminates both sides of the sheet in a single pass.
🔷 Automatic Suction Feeder – OMRON servo-controlled with 21.25" pile capacity and precise electronic overlap adjustment.
🔷 Twin De-Curling Unit – Includes both blade and roller for offset or toner-sensitive stock.
🔷 Integrated Bump Separator – High-speed separation via PLC-controlled rollers with jogger or pallet stacker output.
🔷 Touchscreen with PLC Automation – Easy icon-based navigation—no language setup required.
🔷 Air Shaft Film Mount – Accepts up to 9,842’ of 24–31μm film for fast, clean film handling.
🔷 Heated Chrome Rollers – Dual heated chrome rubber rollers per side with internal sensors for even temp distribution.
🔷 Compact Format – Fits into tighter spaces while maintaining industrial-level output.

Specifications

Applications

📚 Book Covers & Manuals – Dual-sided protection for professional finish and durability.
📦 Retail Packaging & Cartons – Clean lamination for folding cartons, sleeves, and inserts.
📄 Flyers, Brochures & Postcards – High-speed finishing for short- or long-run commercial print jobs.
🛍 POP Signage & Product Cards – Lamination of marketing and point-of-sale material.

Available Options

📍 Jogger 400 – Vibrating stacker for 3.9” piles (required if pallet stacker not used).
📍 Integrated Pallet Stacker – Fully automatic stacking up to 27.5” height.
📍 Non-Sticky Pressure Rollers – For windowed sheets or adhesive-sensitive jobs (up to 2X rollers).
📍 Foliant Foiler – Applies metallic foil or spot varnish film over digital toner.
📍 XL Module – Extends max sheet length to 39.3” (manual unload beyond 27.5”).
📍 XXL Feeding Table Extension – Supports sheets up to 51” (manual feeding only).
📍 PET Film Module – Required for processing PET films (20–26μm).
📍 Film Loader / Manipulator – Electric lift for rolls up to 275.5 lbs.
📍 Anti-Static Bar – Removes charge from laminated output for clean stacking.

Benefits

✅ Double-sided lamination in one pass maximizes efficiency and reduces labor.
✅ Perfect for digital and offset jobs thanks to twin de-curl and wide stock support.
✅ Fully automatic operation with programmable overlap, separation, and feed control.
✅ Compact size with scalable upgrades makes it ideal for growing production needs.
✅ Touchscreen simplicity allows for rapid operator training and error-free setup.
