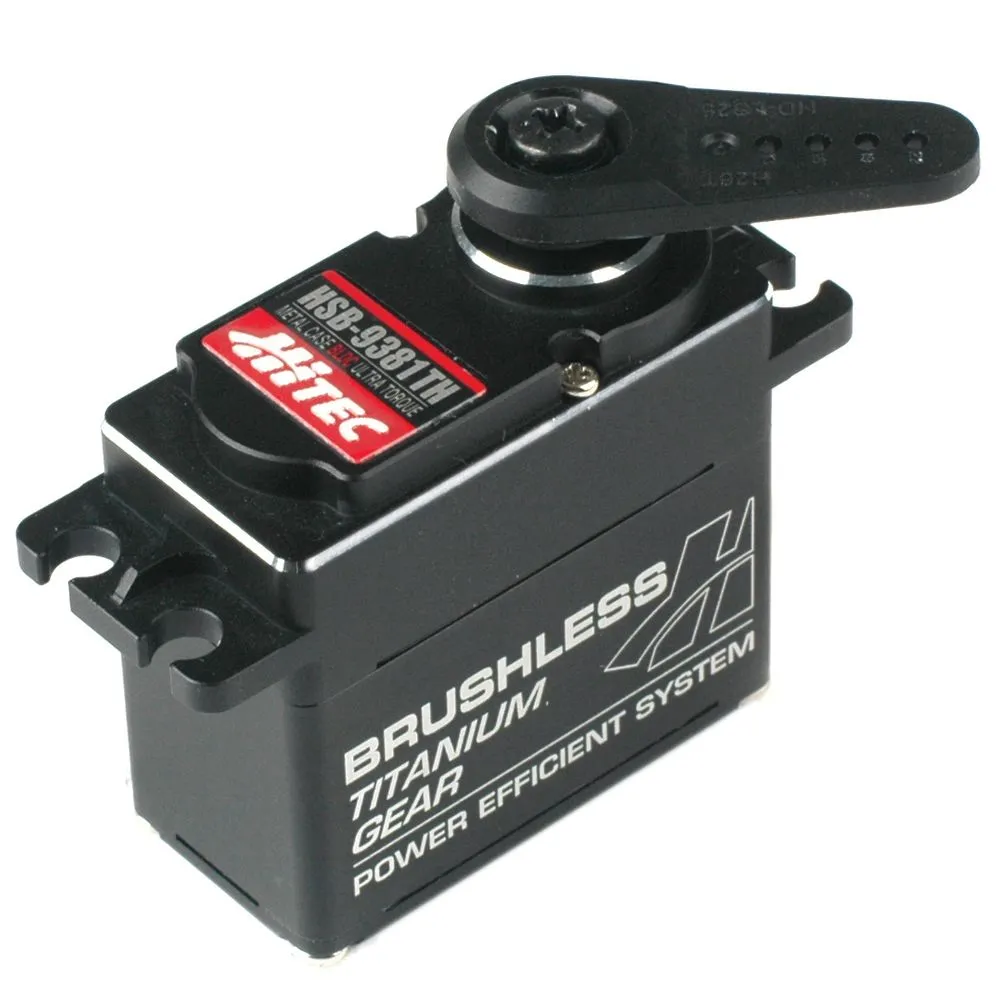

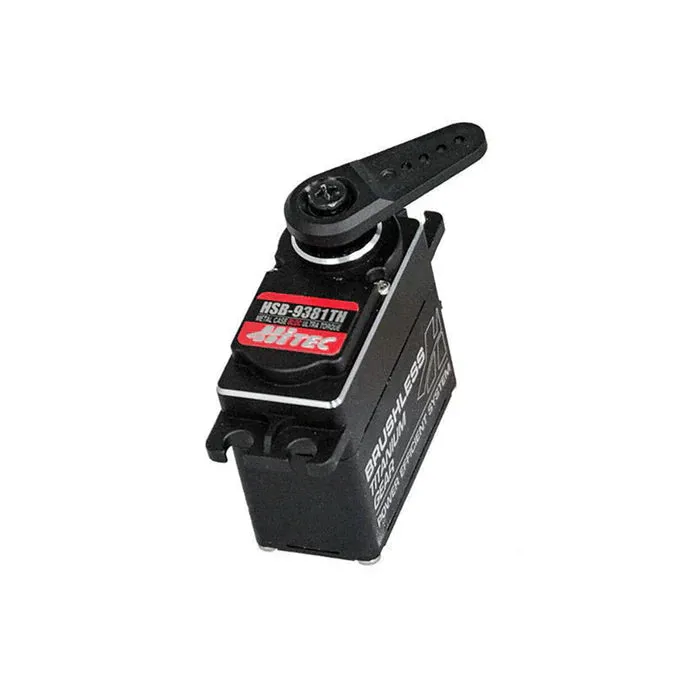

Hitec HSB-9381TH Standard Digital Brushless Servo 72g 34kg/0.14s 6.0V - 7.4V 2220881
Brushless Servo Technology
Constant Output
Regardless of your power input (6.0V - 8.4V), Hitec's brushless servos will maintain constant output power throughout your flight or racing.
BLDC Servos Programmable Digital Circuit
You can utilise Hitec's PC interface to customise your brushless servos to maximise your performance in a multitude of applications.
Hybrid MPD (Metal-Plastic-Duralumin) 1st Gear
The metal, plastic and duralumin hybrid 1st gear gives our brushless servos maximum performance and durability even in the toughest applications. The plastic within the MPD prevents inadvertent electrical contact with the aircraft or vehicle's hardware.
Ultra Low Current Consumption
'Energy efficiency' is a common interest for all modelers. By designing servos which consume only 1/5th of the power of existing brushless servos, Hitec engineers have successfully achieved low power consumption and our goal for combining efficiency and dynamics in a brushless servo technology.
PAD
The Power Absorbing Device prevents the backflow of current to devices that cannot accept it.
Key Features:
- Full metal case
- Ultra efficient Neu-Castle brushless motors
- Extremely low power consumption
- Durable titanium alloy metal gears with dual ball bearings
- Programmable digital amplifier with MOSFET drive
- Ultra hardness gear shaft with 3 axial metal bushing
- Heat sink for motor
- Hybrid MPD (Metal-Plastic-Duralumin) 1st Gear
- Water and dust resistance
- Constant output
Features:
- Industry-Leading Titanium Gear Train
- 25-Tooth Standard Spline
- Constant Power Output
- Programmable 12-Bit Resolution Digital Circuit
- Low Current Consumption
- Energy Efficient
Programming Functions:
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Soft Start Rate
- Data Save / Load
- Program Reset (From File)
