Name: Large Automatic Stacking Machine for Pouch Cell Electrode up to 400x170 mm - MSK-111A-ALT
SKU: 876305

Large Automatic Stacking Machine for Pouch Cell Electrode up to 400x170 mm - MSK-111A-ALT

$ 249998.00

$ 0.00

Save: $

Unavailable

Please select combo product attributes

The combo subtotal is $,SAVE$

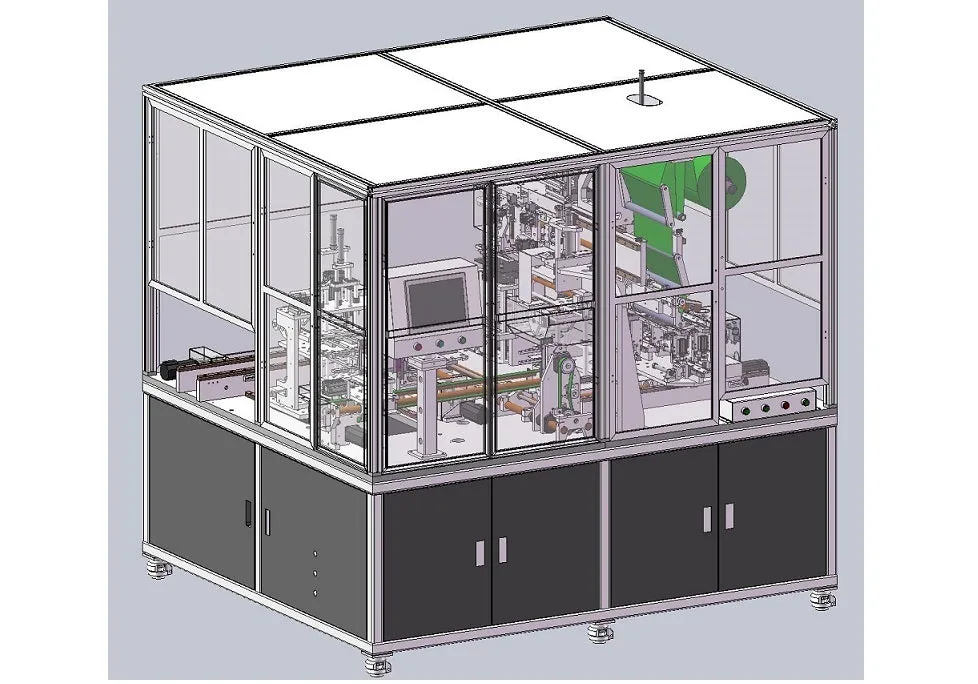

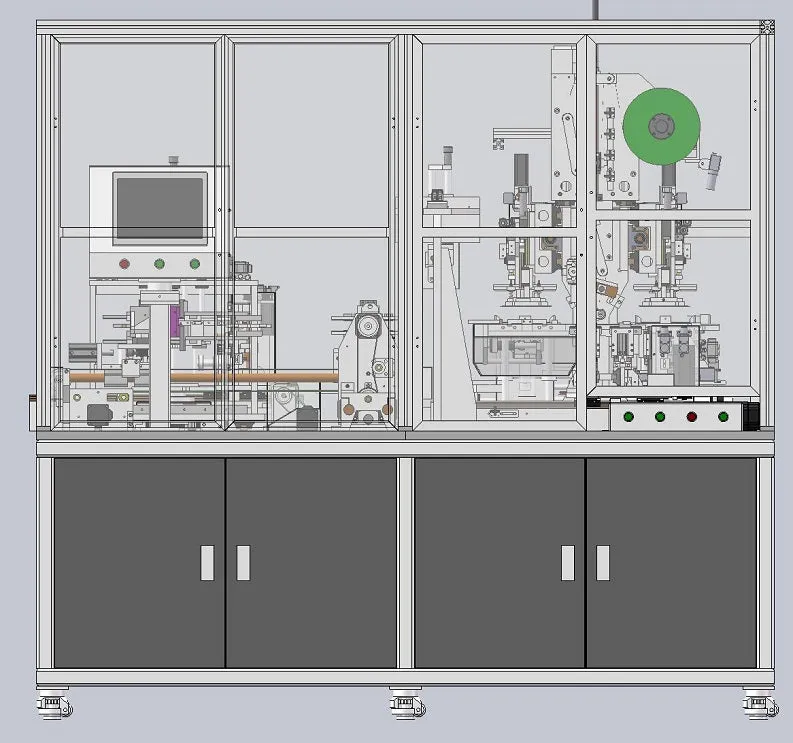

MSK-111A-ALT is a fully automatic stacking machine for large pouch cell electrodes up to L400 mm x W170 mm x 25mm thick at the speed about 2 seconds per piece.
Advanced Features:

PLC Touch Screen Control allows easy condition setting
Auto electrode pick-up & stacking via vacuum suction manipulator
Adjustable mechanical fixture for accurate electrode positioning
Unreeling rotors for separator film feeding with
Auto-tension control for separator film delivery
ESD system and dust removing system are built in the operation house

SPECIFICATIONS:

Power	208-240VAC, 50/60Hz, three-phase 380V AC, 3 phases 10 KW
Stackable Size Ef electrode	*Min. L120 mm x W 80mm* *Max. L400 mm x W 170 mm*
Stackable Layers	Up to 250 layers programmable Max. thickness: 25 mm
Stacking Speed	~ 2 seconds per layer ( based on 233x100 mm electrode )
Max. Electrode Thickness	Piled up thickness < 10 mm
Aligning Accuracy	±0.5 mm for stacked electrodes
Stacking Fixture	One set of stacking die fixtures is included for immediate use. ( Please confirm electrode size before purchase) If you need different size electrode stacking, please inform us before order. We will make it for you at an extra cost. Each size cell needs one mold
Vacuum Pump	An Oilless Vacuum pump (28L/min, 140W) is built-in to enable the vacuum suction function of the electrode pick-up/stacking manipulator.
Operation Procedure	Manually load electrode sheet to sample tray Set up the program to stacking layer number Push button to stack the electrode with separator automatically Then finish, cut-off separator and tape the stacked cell, and take off it manually
Utility requirement	0.5 - 0.8 MPa (Air compressor is not included in the standard package. Please click here to order. Gas flow requirement: 150 L/minute The environment Temperature25±3, Humidity: 30~90RH, without vibration and electromagnetic interference
Compliance	CE Certified NRTL certificate is available upon request at extra cost
