Description
The M5GO IoT Starter Kit is a cost effective IoT starter development kit. The kit contains Core Controller M5GO 6 expansion units with different functions(sensors/actuators/splitters) . The core controller M5GO adopts Espressif ESP32 chip, equipped with 2 low-power Xtensa® 32-bit LX6 microprocessors, with a main frequency of 240MHz. With 16M FLASH memory for larger program size. Besides its powerful , the MCU also supports Wi-Fi, which can be used to build smart wearable devices, smart home and other applications.
Product Features
- Based on ESP32 development
- 16M FLASH
- Integrated HD IPS display panel with various hardware peripherals
- Rich resources interface, compatible with M5Stack stacking modules and sensors, Strong expandability
- The base is compatible with 8mm size LEGO blocks, the structures just so interesting!
- Microsoft Azure authentication device
- Compatible with multi-platform development:
- UIFlow
- MicroPython
- Arduino
- .NET nanoFramework

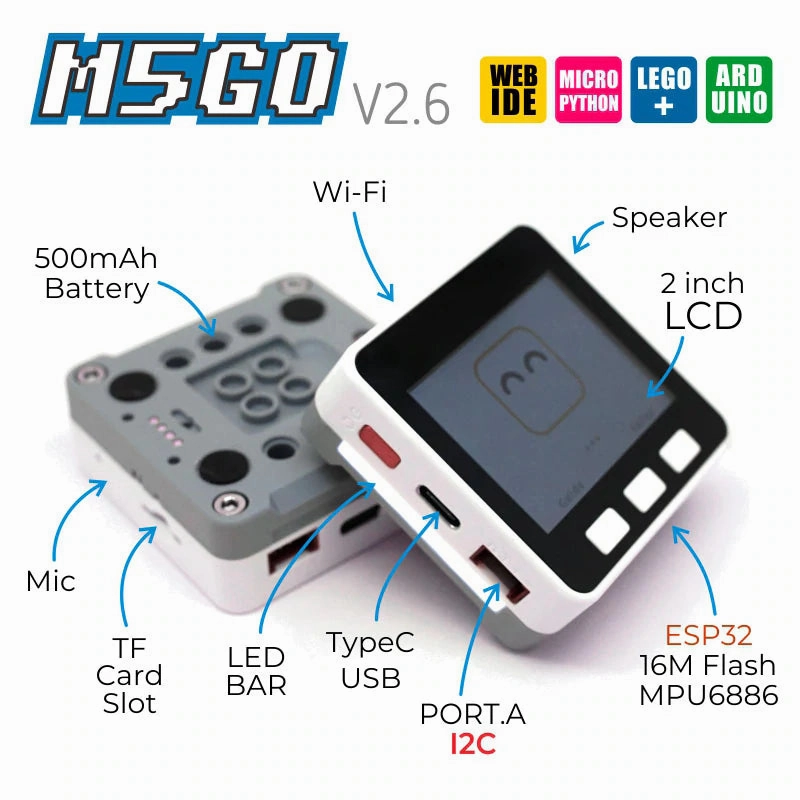

M5GO IoT controller
Low code development:- Supports UIFlow graphical programming platform, scripting-free, cloud push
- Fully compatible with Arduino, ESP32-IDF and other mainstream development platforms
- FreeRTOS support, with dual-core and multitasking mechanism, it can perform the tasks efficiently, Program optimization.
High integration.- 2.0-inch IPS display panel, 6-axis IMU, programmable RGB lights x10, microphone, speaker, custom buttons x3
- Built-in Li-ion power supply, integrated power management chip, supports TypeC interface and POGO PIN interface power supply
- Finely tuned RF circuitry for stable and reliable wireless communication
Strong expandability.- GROVE expansion ports x3 (I2C, GPIO, UART)
- Easy access to M5Stack hardware and software system, stackable module design, plug-and-play sensor expansion
6x expansion units
- ENV UNIT III:
Temperature, humidity, and atmospheric pressure sensors, with I2C communication interface for rapid acquisition of environmental information. - PIR UNIT:
Body sensor, passive pyroelectric for human body sensing, digital signal output status. - ANGLE UNIT:
Knob Potentiometer, analog signal input for music/lighting adjustment - IR UNIT: Integrated
infrared transmitter, receiver. Free coding, infrared transceiver. - RGB UNIT: 3x
Programmable RGB LED, support programming to control any color display - HUB UNIT:
I2C device splitter, expand single I2C bus to 3 channels, can access differentI2C addressdevices
Switch on/off operation:
Power on: Click the left red button
Power off: Quick double click the left red button
USB power: By default, It can not be shutdown when USB power is on.
Included
- 1x M5GO
- 6x Units(ENV III, IR, RGB, PIR, ANGLE, HUB)
- 4x LEGO Blocks
- 12x LEGO Connections
- 4x GROVE cable
- 1x Type-C USB (20cm)
- 1x Quick Start Guide
Applications
- STEM Education
- IoT Controller
- Smart Home
- Smart Weather Station
Specifications
| Specifications | Parameters |
|---|---|
| ESP32-D0WDQ6-V3 | 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi |
| Flash | 16MB |
| Input Voltage | 5V @ 500mA |
| Host Interface | TypeC x1, POGO PIN x1, I2C x1, GPIO x1, UART x1 |
| IPS Screen | 2 inch, 320x240 Colorful TFT LCD, ILI9342C, 853nit max brightness |
| Keys | Custom Keys x 3 |
| Speaker | 1W-0928 |
| Microphone | Analog BSE3729 Microphone |
| IMU | 6-axis MPU6886 |
| USB Chip | CH9102F |
| LED | SK6812 RGB LED x 10 |
| Antenna | 2.4G 3D antenna |
| Battery | 500 mAh @ 3.7V |
| Operating Temperature | 0°C to 40°C |
| Net Weight | 56.4g |
| Gross Weight | 228g |
| Product Dimensions | 54 x 54 x 21 mm |
| Package Size | 147 x 90 x 40 mm |
| Cover Material | Plastic ( PC ) |
