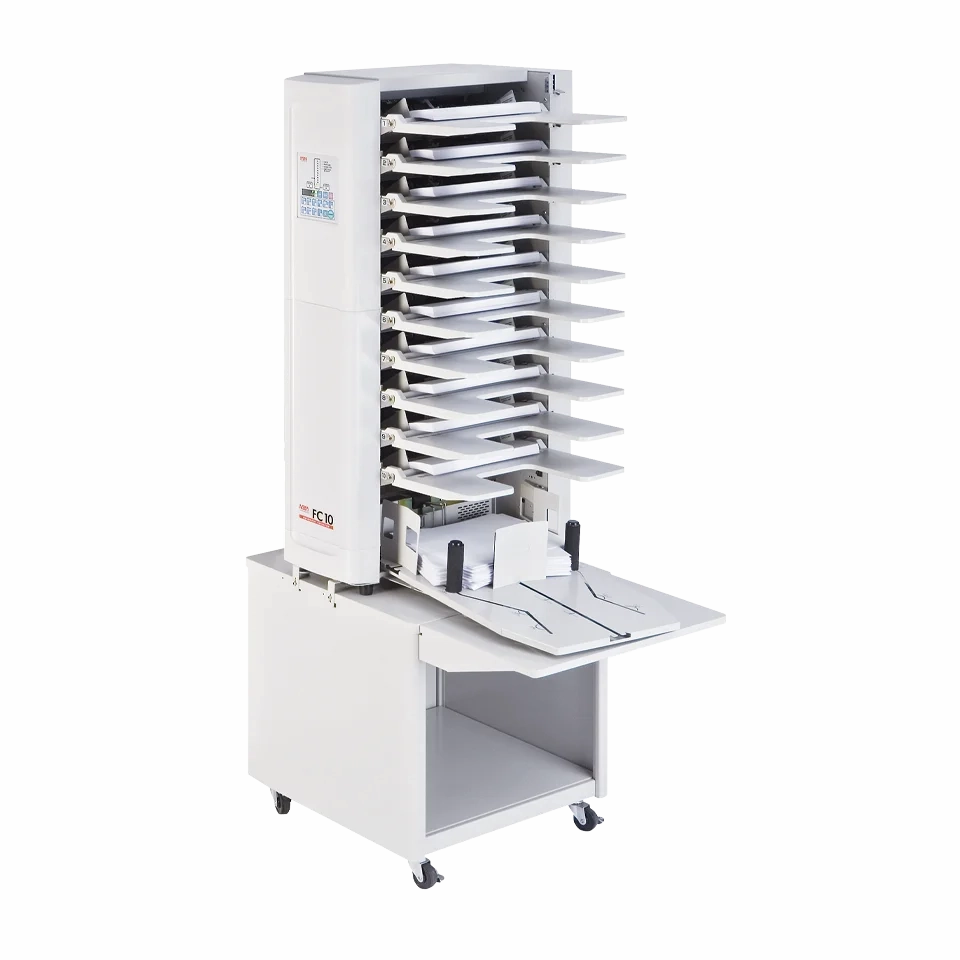

10-Bin Automatic Friction Collator
The MBM FC10 is a compact, high-speed friction collator designed for automated set gathering across a wide range of paper stocks. With ten feed bins, touch-button programming, and speeds of up to 3,600 sets per hour, the FC10 is ideal for short-run print environments, print shops, and on-demand finishing lines. Programmable batching and alternate bin modes provide continuous, unattended operation with reliable accuracy.
Key Features

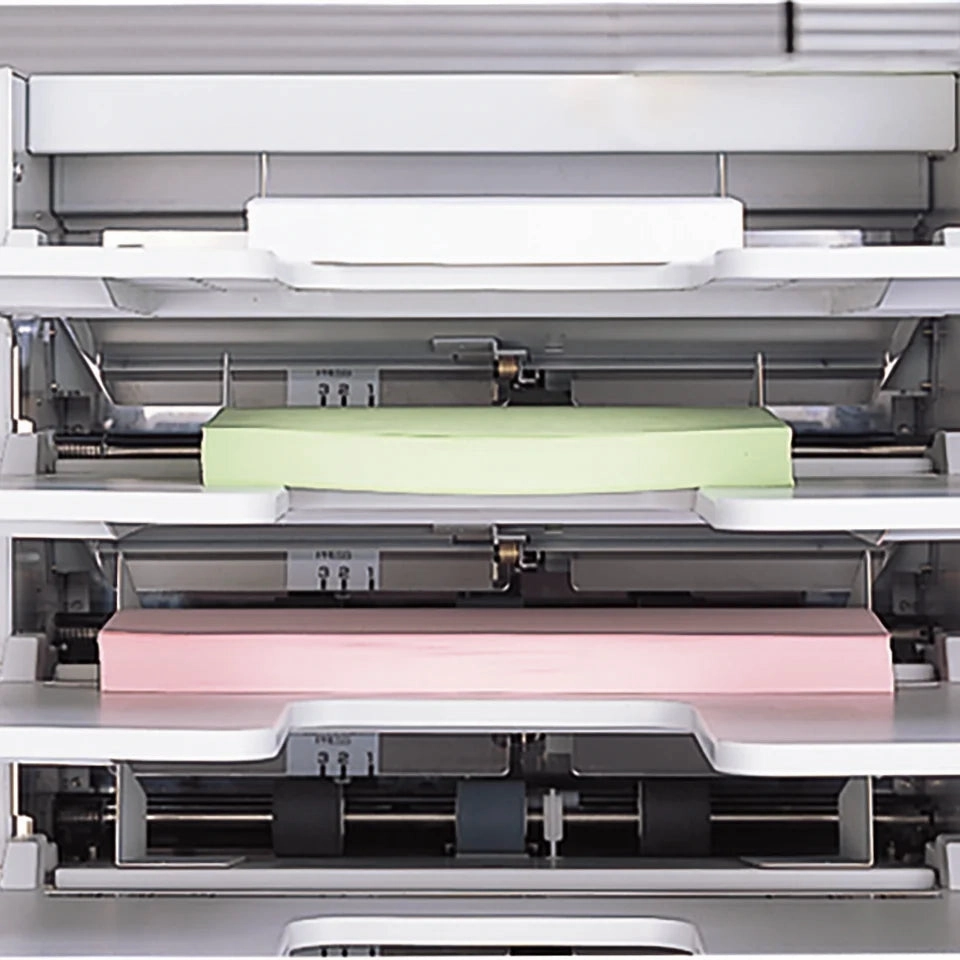

🔷 Automatic 10-bin friction feed design
🔷 Speeds up to 3,600 sets per hour

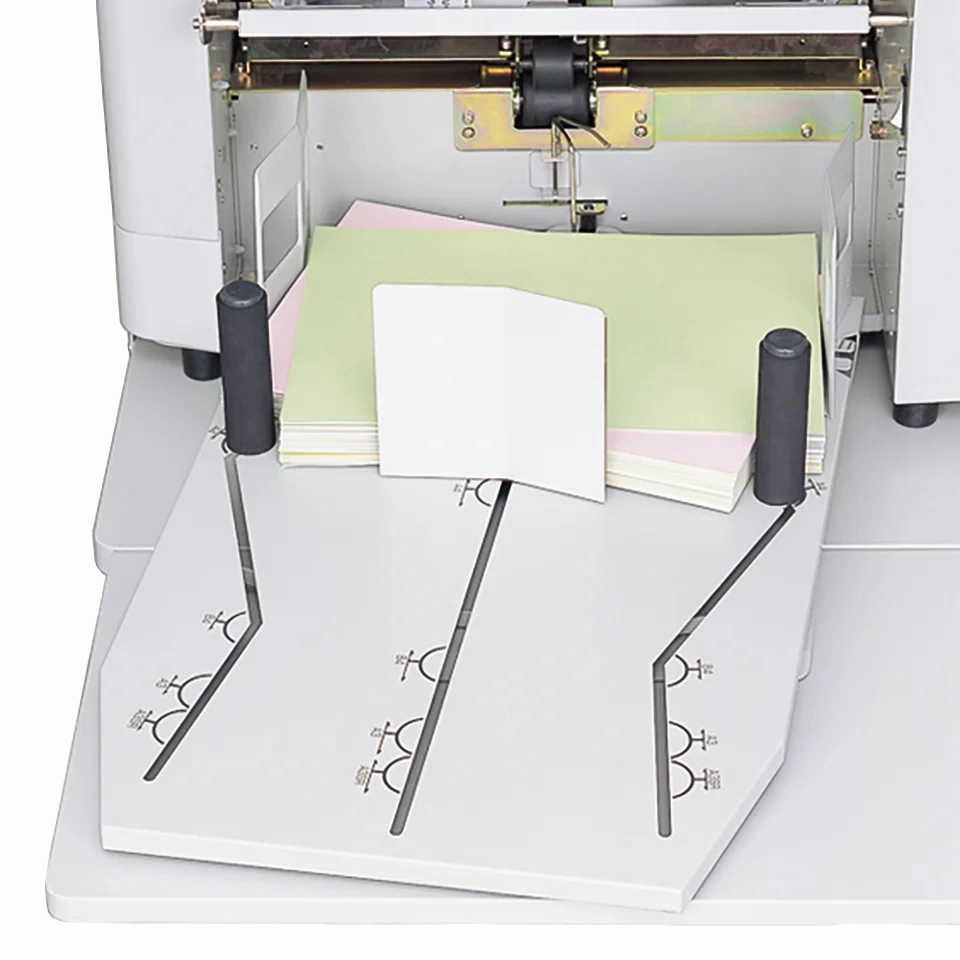

🔷 Criss-cross or straight stacking output

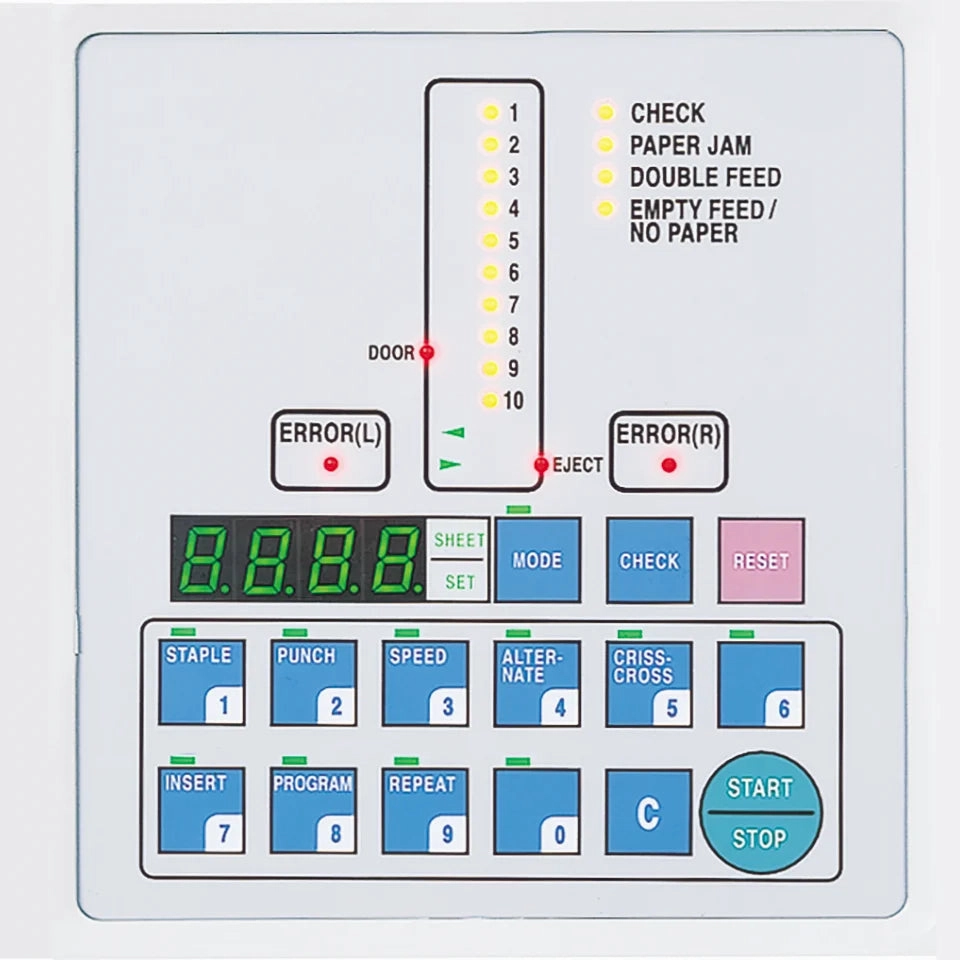

🔷 Touch-button control panel with 4-digit LED counter
🔷 Adjustable feed/separator pressure and bin sensors
🔷 Self-centering paper guides for various sheet sizes
Specifications
| Specification | Detail |
|---|---|
| Number of Bins | 10 |
| Max Speed | 3,600 sets per hour* |
| Paper Size Range | 3.75" x 5.8" to 12.8" x 18.5" |
| Paper Weight Range | 20 lb to 100 lb bond (up to 1,000 lbs index) |
| Bin Capacity | 275 sheets per bin* |
| Output Stacking | Straight or criss-cross stacking |
| Power Requirement | 110 V, 60 Hz |
| Dimensions (D x W x H) | 21.5" x 39.75" x 19.75" |
| Shipping Weight | 82 lbs |
| Certification | UL and C UL approved |
*Performance may vary based on paper type and conditions.
Applications
📄 Automated collation of booklets, manuals, and NCR sets
📚 Set building for finishing workflows and bookletmakers
📦 Efficient prep for saddle stitching or perfect binding
🛍 Insert collation for retail packets and mailers
Available Options
📍 Base stand with casters
📍 Optional corner stapler
📍 Expanded feed tray attachments
Benefits
✅ Saves time with fast, accurate collation
✅ Continuous feeding with alternate bin mode
✅ Easy setup with intuitive LED control panel
✅ Compact footprint fits in tight workspaces
✅ Compatible with various stock sizes and weights
