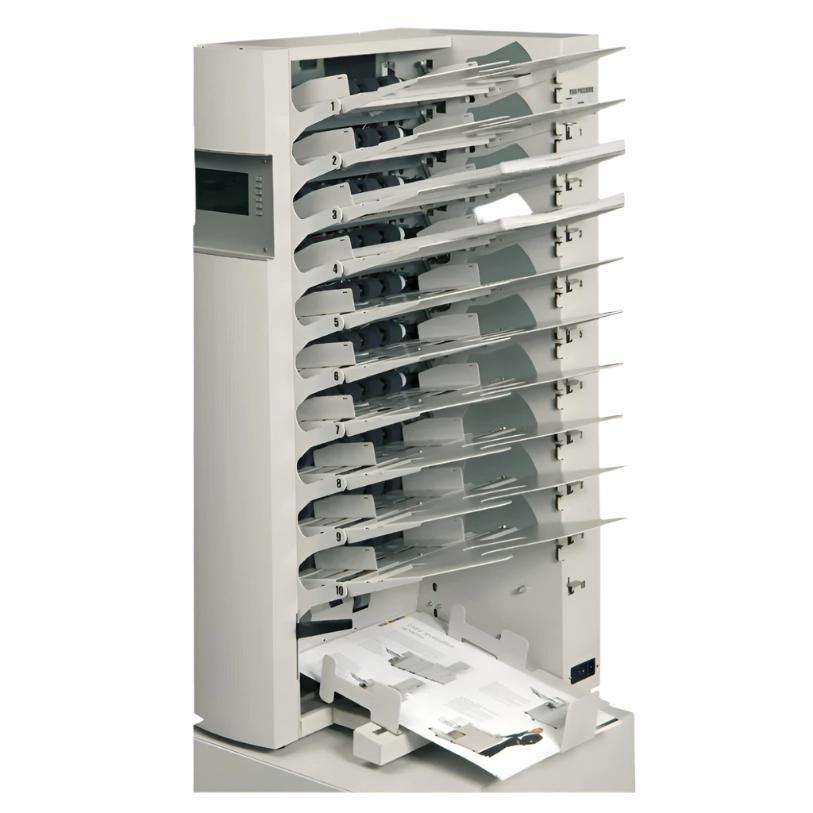

The Morgana 510 Feeder/Collator series is a high-capacity, user-friendly system designed for both digital and litho printed applications. Featuring a modular 10-station bin tower with center registration, it efficiently handles feeding and collating for a wide range of finishing tasks. The 510 series integrates seamlessly with Morgana booklet makers for streamlined production.
Models Available
- C 510 Collator β Standard collator model.
- CF 510 Feeder/Collator β Feeder and collator combination.
- AC 510 Collator β Includes air separation for improved feeding.
- ACF 510 Feeder/Collator β Feeder/collator with air separation.
Key Features
πΉ High-Speed Collation β Up to 4,000 sets per hour.
πΉ Fast Feeding β Up to 10,000 sheets per hour (CF 510/ACF 510).
πΉ Air Separation β AC and ACF models improve feeding of static-prone stock.
πΉ LCD Control Panel β Simple operation with memory recall for frequent jobs.
πΉ Error Detection β Detects misfeeds, double feeds, paper jams, empty bins, and full stackers.
πΉ Compact, High-Capacity Design β 10-station bin tower with center registration.
πΉ Versatile Paper Handling β Supports various sizes and weights for flexible print finishing.
πΉ Offset or Straight Stacking β Neatly organizes finished sets.
πΉ Seamless Booklet Maker Integration β Compatible with Morgana BM61, BM200e, and BM2000S.
Technical Specifications
| Specification | Details |
|---|---|
| Maximum Sheet Size | 12.6β x 18β (320 x 457 mm) |
| Minimum Sheet Size | 4.75β x 8.25β (120 x 210 mm) |
| Collating Speed | Up to 4,000 sets per hour |
| Feeding Speed | Up to 10,000 sheets per hour (CF 510/ACF 510) |
| Bin Capacity | 1.102β (28 mm) |
| Paper Weight Range | 14 lb bond to 67 lb bond (50 gsm to 250 gsm) |
| Air Separation | AC and ACF models include air-blown separation |
| Error Detection | Double feed, misfeed, empty bin, paper jam, stacker full |
| Receiving Tray | Offset or straight stacking |
| Control Panel | Large LCD display with memory recall |
| Dimensions (H x W x D) | 75.8β x 23.6β x 27.6β (1925 x 600 x 700 mm) |
| Weight | 238 lbs (150 kg) |
Benefits
- High Productivity β Handles up to 4,000 collated sets or 10,000 fed sheets per hour.
- Versatile Performance β Ideal for both digital and litho printed work.
- User-Friendly Operation β Intuitive LCD panel with programmable job memory.
- Reliable Feeding β Air separation ensures smooth handling of static-prone stock.
- Seamless Integration β Works with Morgana booklet makers for a complete finishing solution.
Ideal Applications
π Digital Printing β Feeds and collates pre-collated digital prints.
π Litho Printing β Handles traditional litho print collation.
π Booklet Making β Integrates with Morgana booklet makers for automated finishing.
Software Features
β Automated Job Setup β Stores and recalls frequently used jobs.
β Real-Time Error Monitoring β Detects misfeeds, jams, and full stackers.
β Batch and Count Management β Optimizes workflow for high-volume production.
