Overview

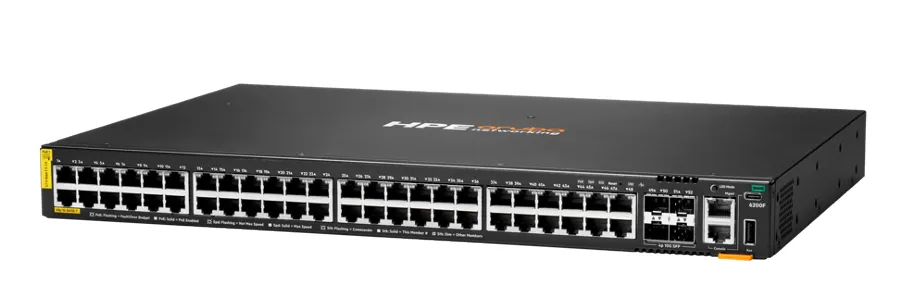

The HPE Aruba Networking CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. With a cloud-centric design that combines a fully programmable OS with the HPE Aruba Network Analytics Engine, the HPE Aruba Networking CX 6200 extends industry-leading monitoring and troubleshooting capabilities to the access layer. Support of Aruba NetEdit and the Aruba CX Mobile App verify that configurations are flawless and easy to deploy. Make your network ready for tomorrow’s unpredictable demands with a powerful Aruba Gen7 ASIC architecture to deliver fast, non-blocking performance. Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 8 switches, providing scale and simplified management. This series includes fixed (CX 6200F) and modular (CX 6200M) switches with built-in high speed uplinks and up to 1440W of PoE to support IoT devices such as security cameras and wireless APs.

Specs

Ports:

• 48x ports 10/100/1000BASE-T Class 4 PoE Ports, supporting up to 30W per port
• 4x 100M/1/10G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at
• 1x USB-C Console Port
• 1x RJ-45 Console Port
• 1x OOBM
• 1x USB Type-A Host port

Throughput : Up to 130.9 Mpps

Switching Capcity : 176 Gbps

PoE capability : 370W

Weight : 5.1
