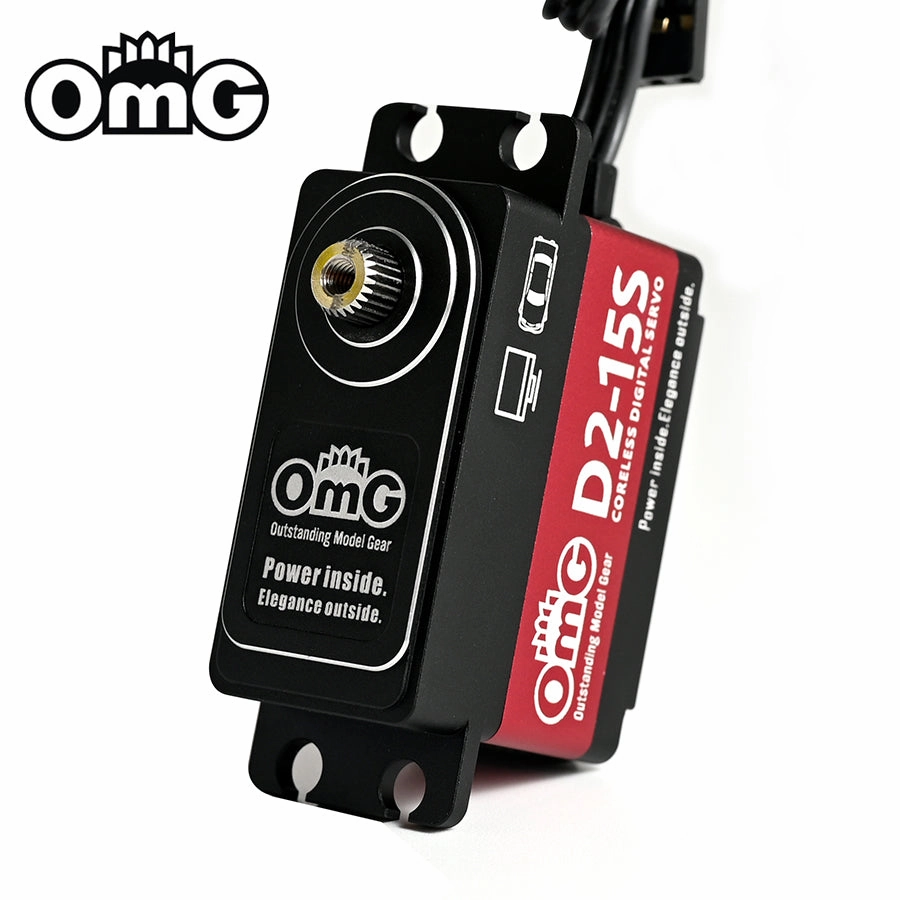

OMG (#LP-15CF/RD) D2-15S Low Profile Digital Servo - Red
Feature:
- Recommended for Drift and On-Road Racing
- High performance and high quality full metal low profile Coreless digital servo
- Programmable with OMG USB Servo Programmer
- Stainless steel gear for increased durability
Specification:
- Gear: Stainless steel 25T
- Operating Voltage Range: 6 - 7.4Volts DC
- Speed (s/60°@6.0V/7.4V): 0.065 / 0.058
- Torque kgf.cm. (6.0V/7.4V): 15.0 / 16.5
- Size : 41 x 20.5 x 29mm
- Weight: 55g
- Motor Type: Coreless motor
- Limit Angle: 180±10° (500-2500µsec)
- Operating Travel: 180° (1000-2000µsec)
- Rotating Direction: 1500-2000µsec
- Neutral Position: 1520µsec
- Maximum Travel: 180° (500-2500µsec)
- Pulse Width Range: 500-2500µsec
- Dead Band Width: 2µsec
- Connector Wire Length: 195mm
- Connector Wire Gauge: 22 PVC
What is included:
- OMG (#LP-15CF/RD) D2-15S Low Profile Digital Servo - Red (1 pc)
