SiAECOSYS 8000W V4 96V 125Kph 2Wd Dual Hub Motor with APT96600 Controller kits for E-Car

NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)

For 8000W motor kits, it could be used for electric car, which could be96V125KPH.

e.g. Light Retro Electric Car,
E-car weight, approx 815kg 285kg
Tire: 185/65 R14
Speed:peak 125km/h@96V by 2wdwhen fully charged
Climbing slope: 14.5°@900kg by 2wd
Battery: 96V200Ah lithium

Application

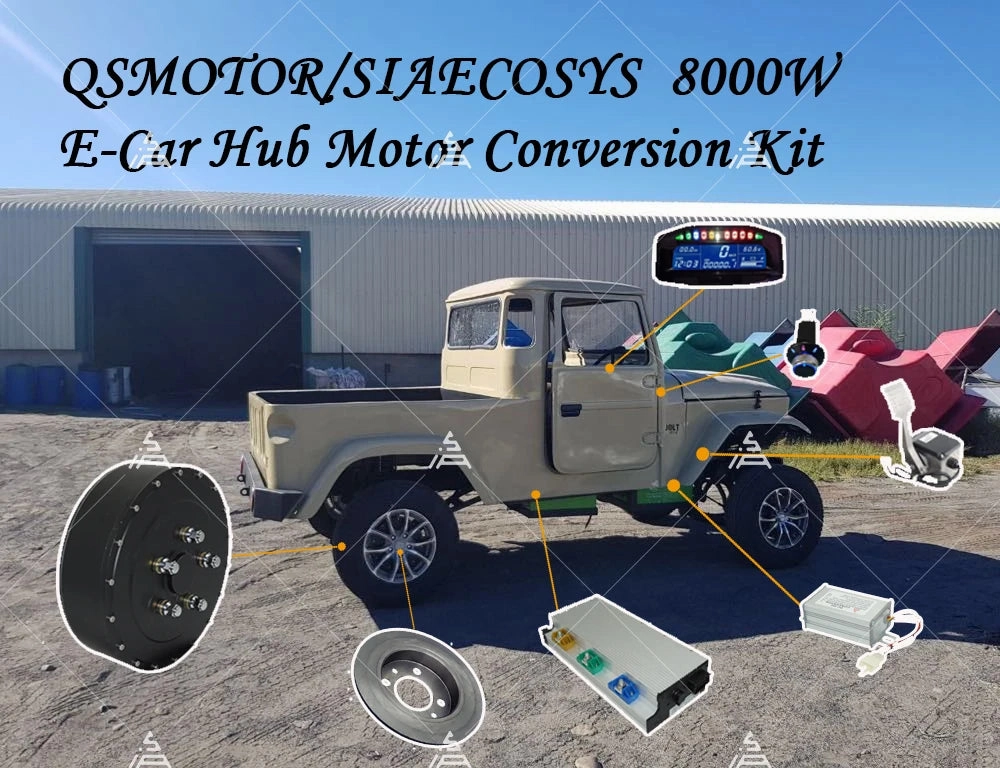

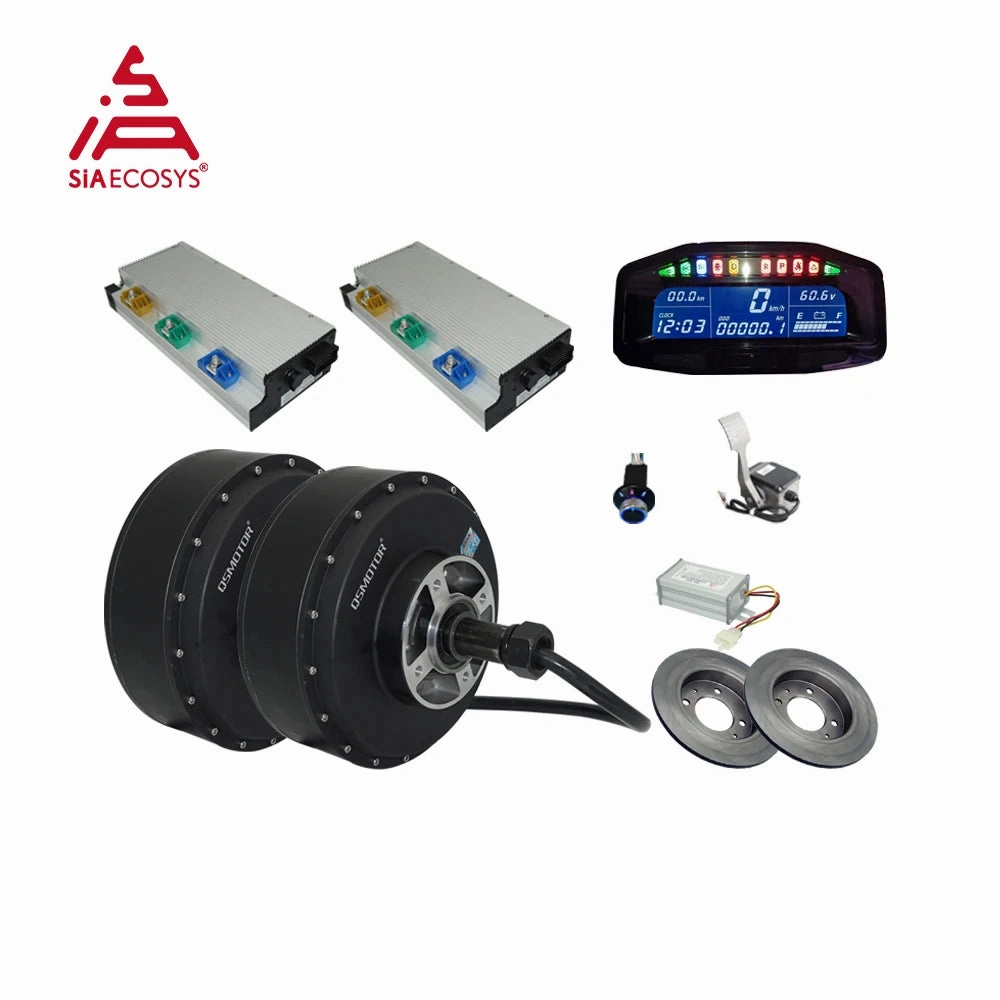

One set including below kits

1.2pcs X QSMOTOR273 8000WV4electric wheel hub motor

2.2pcs XAPT96600sine wave motor controller with standard CAN-BUS

3. 1pcs X X8-E 48-96V Programmable Electric Car Speedometer

4. 1pcs X 0-5V Electric Car Throttle Pedal

5. 1pcs X DNR gear switch

6. 2pcs X Disc brake

7. 1pcs X DC DC converter 96V

Key Features

1). Simplify to make a electric-car. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in wheels, and easy to be hybrid car.

4). Easily to make 4-wheel drive, which could spot turn.

5). Support regenerative braking

6). High efficiency: 85~92%

7).More cooper compare to V3 motors, better performance.

Product Description

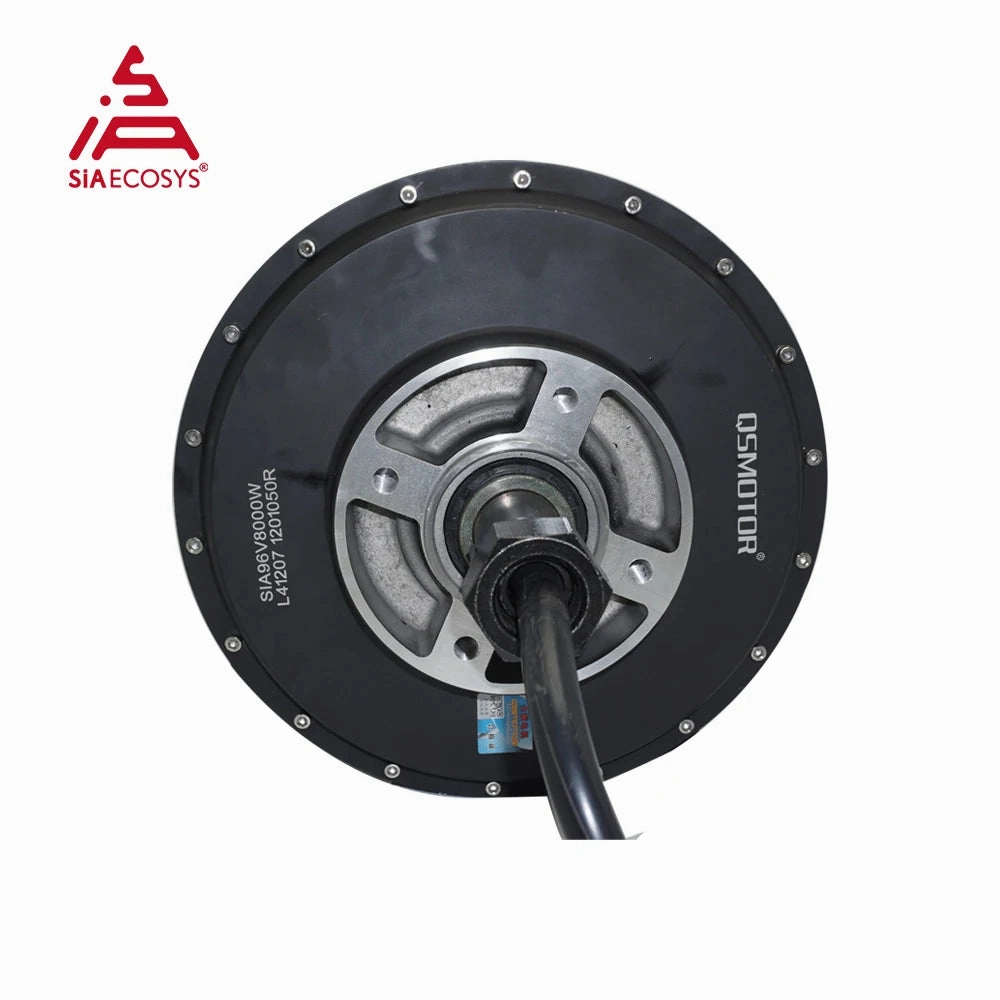

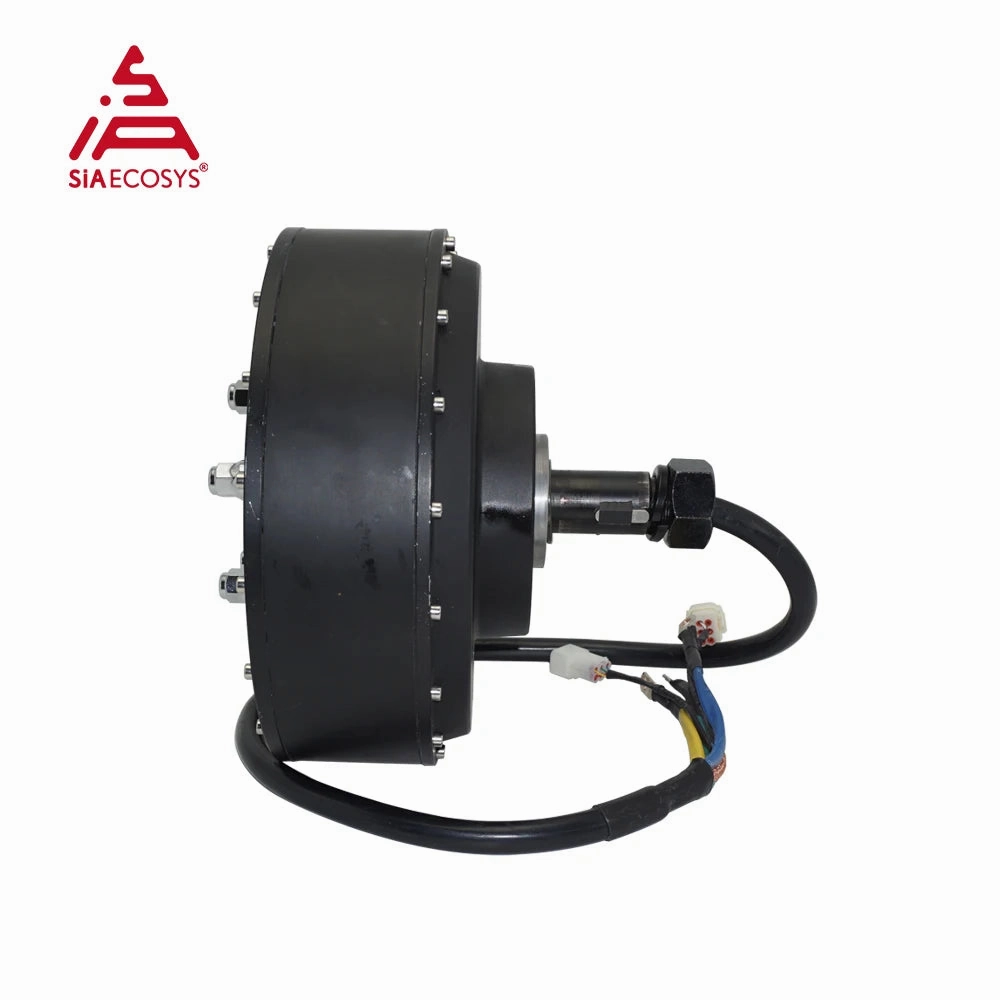

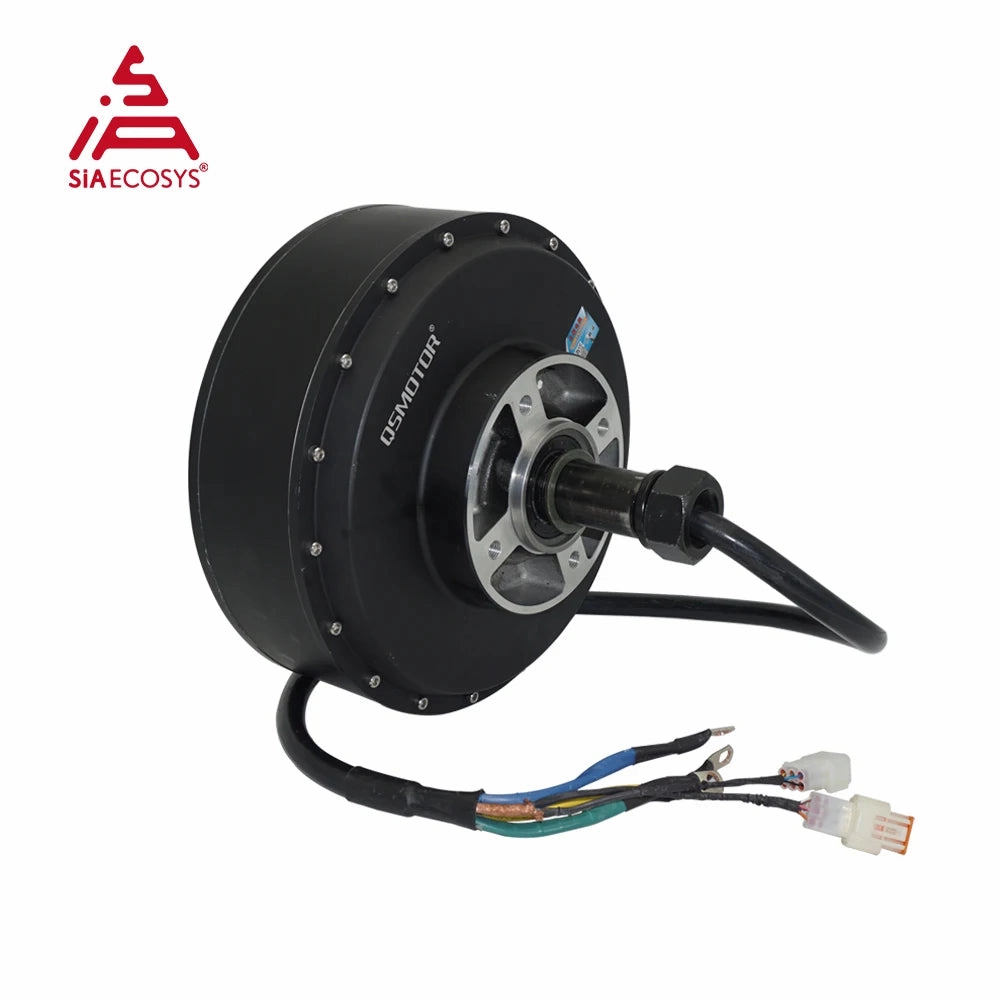

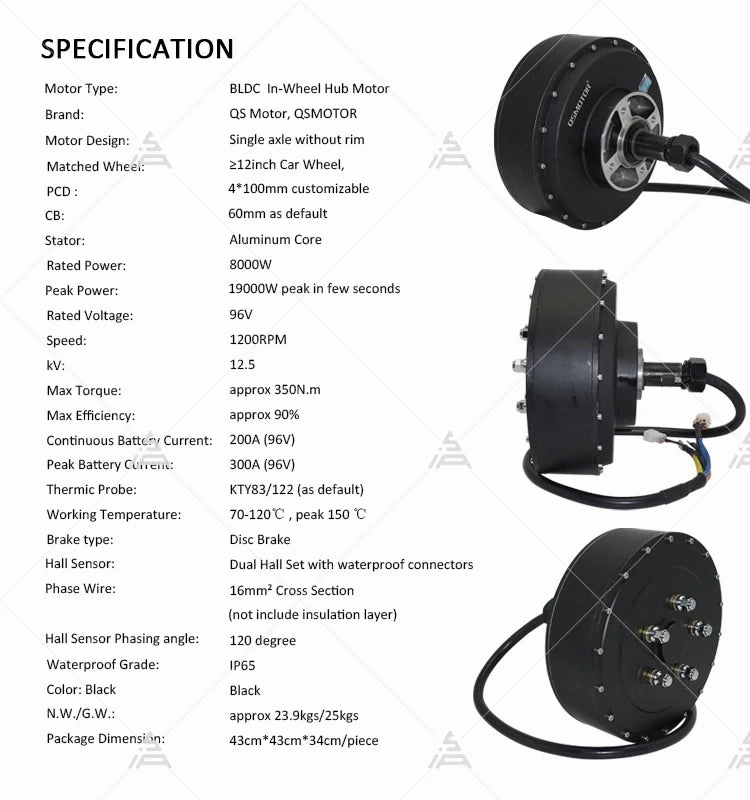

1. QSMOTOR273 8000W V4 Electric Car Hub Motor

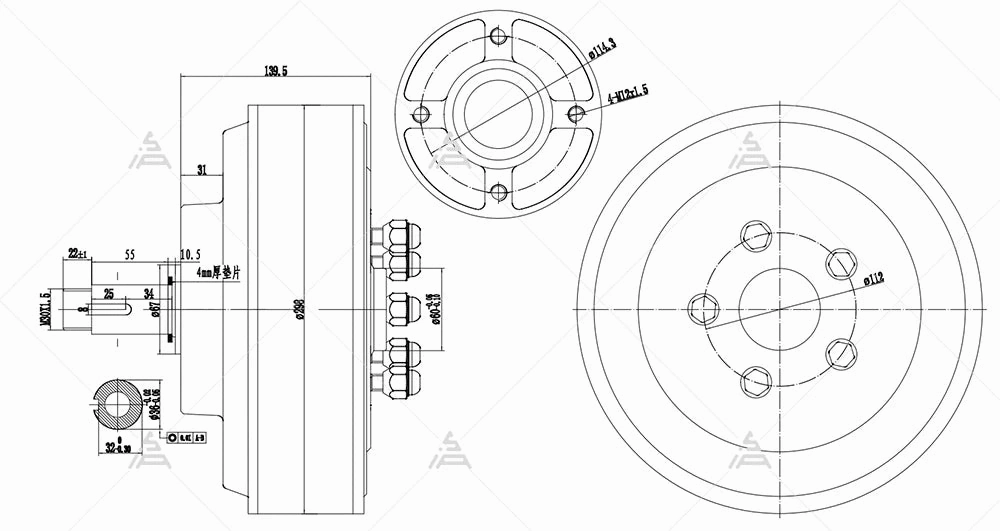

Drawing

Test Report

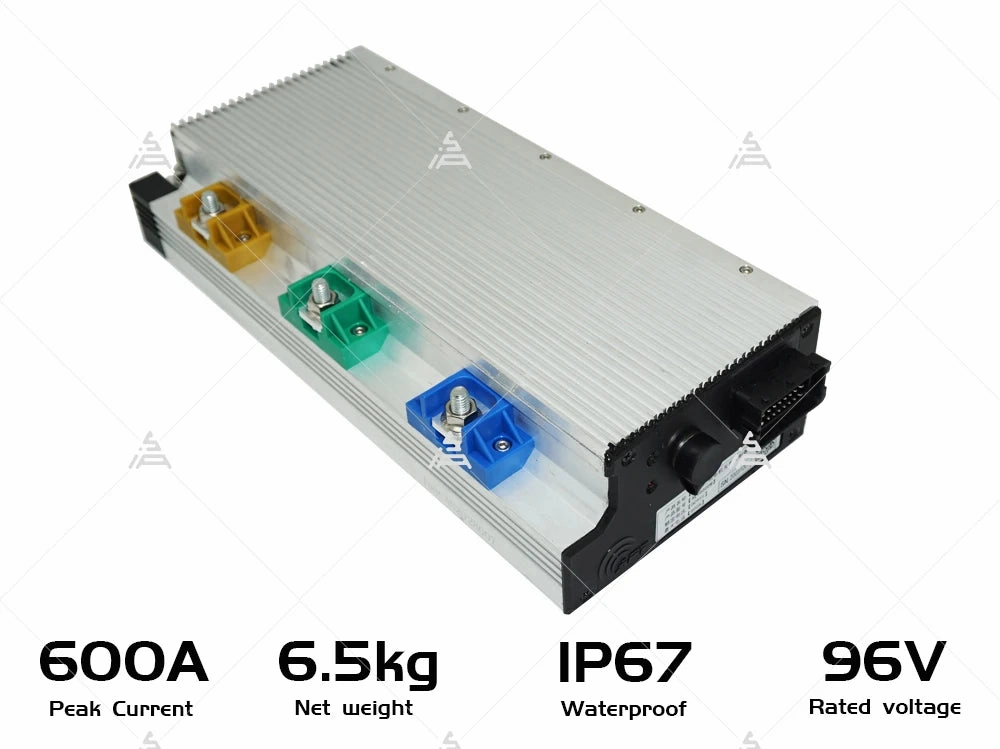

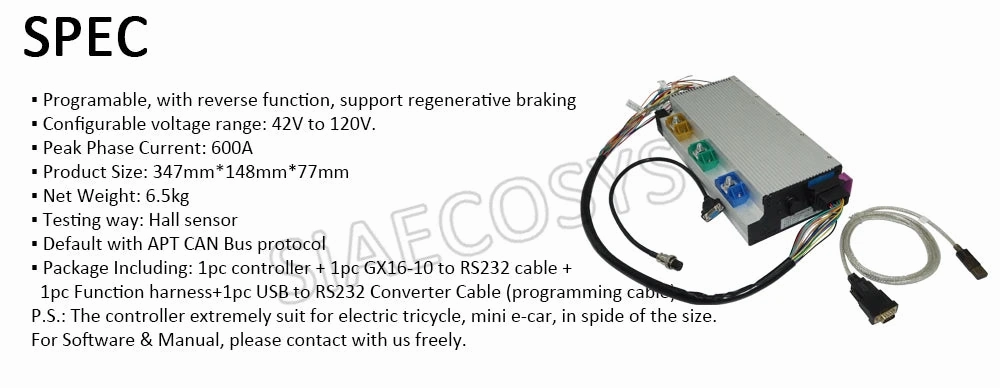

2.APT9660096V sinusoidal wave BLDC motor controller, with CAN BUS

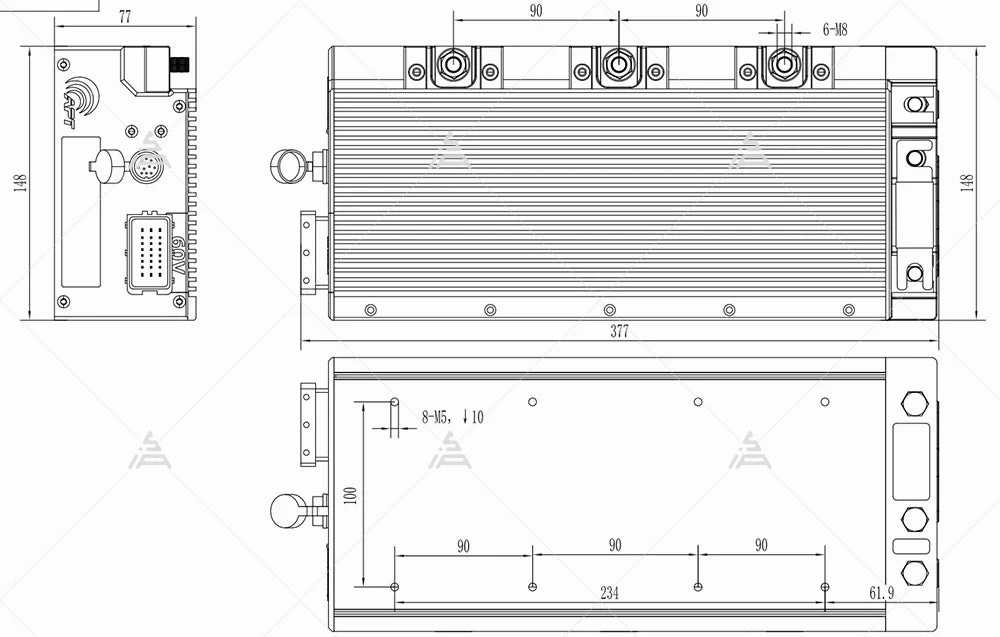

Drawing

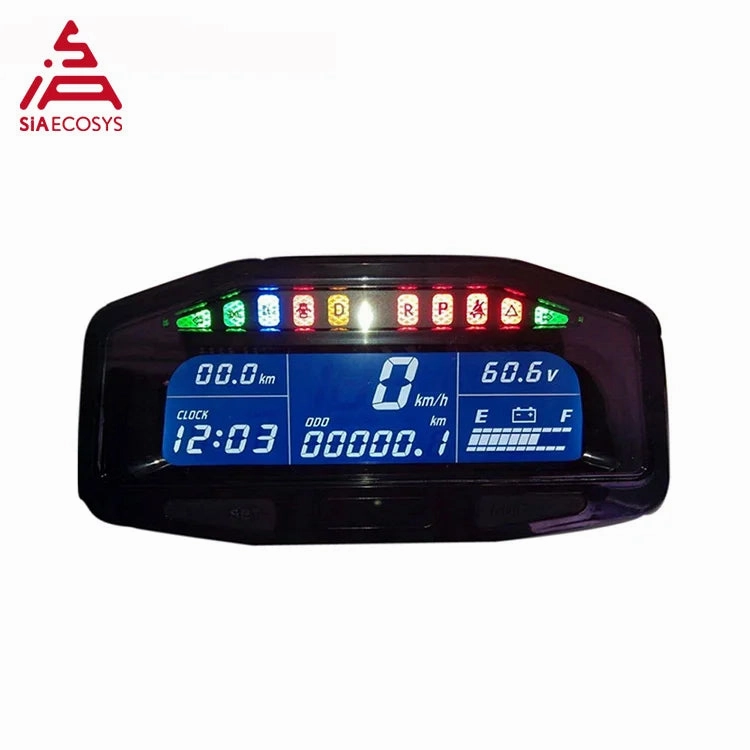

3.XE-8 speedometer

Place of Origin: China(Mainland)

Model Number: X8-E

Application: Electric Car, EV

Rated Voltage:48V-96V

Work voltage: 0-120V

Programmable items: voltage, trip, time, background light

Show Time, driving distance, speed, voltage, electric quantity

Test Speed Type: Hall Sensor

Net weight: 0.57kg

Size: 205mm*103mm*67mm

Packing size: 220mm*160mm*100mm

PS：We don't provide female and male waterproof connectors, pins for as below picture as default.

It will cost extra USD3.0/set for unit speedometer.

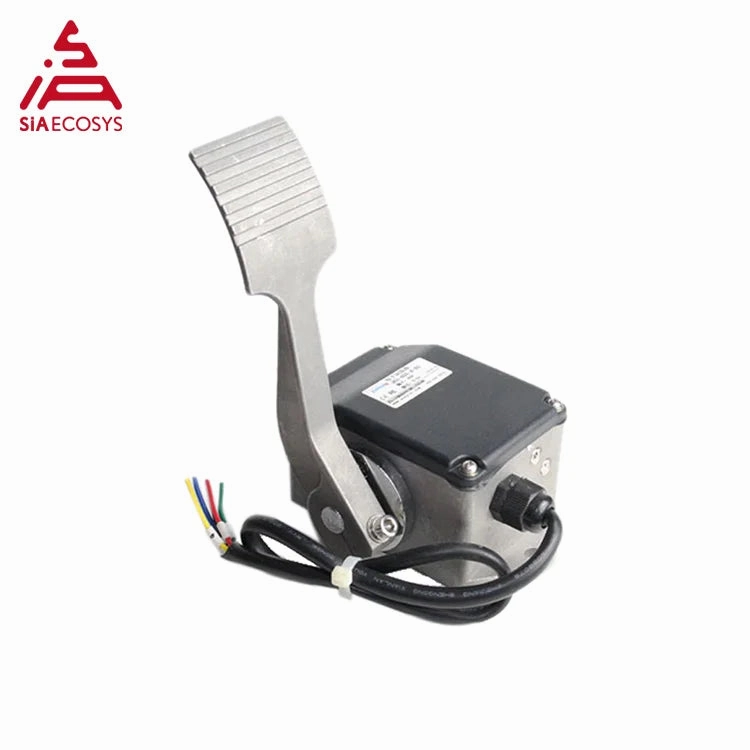

4.0-5V Electric Car Throttle Pedal

Hall type:JKH mode

Input voltage: 5V 12V 15V 24V 36V 48V 60V 72V 84V 96V 120V

Output voltage: 0.8V-4.2V

Default: three wires out(cannot connect with switch), 4.2v input voltage. 0.8-4.2v output voltage.

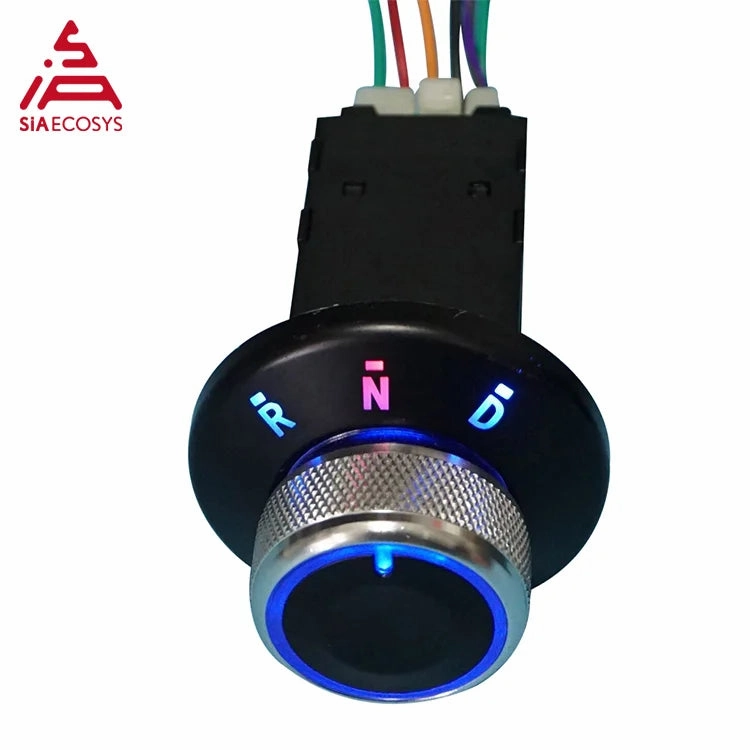

5.DNR gear switch

Include D N R three gears and light, suitable for electric tricycle and car.

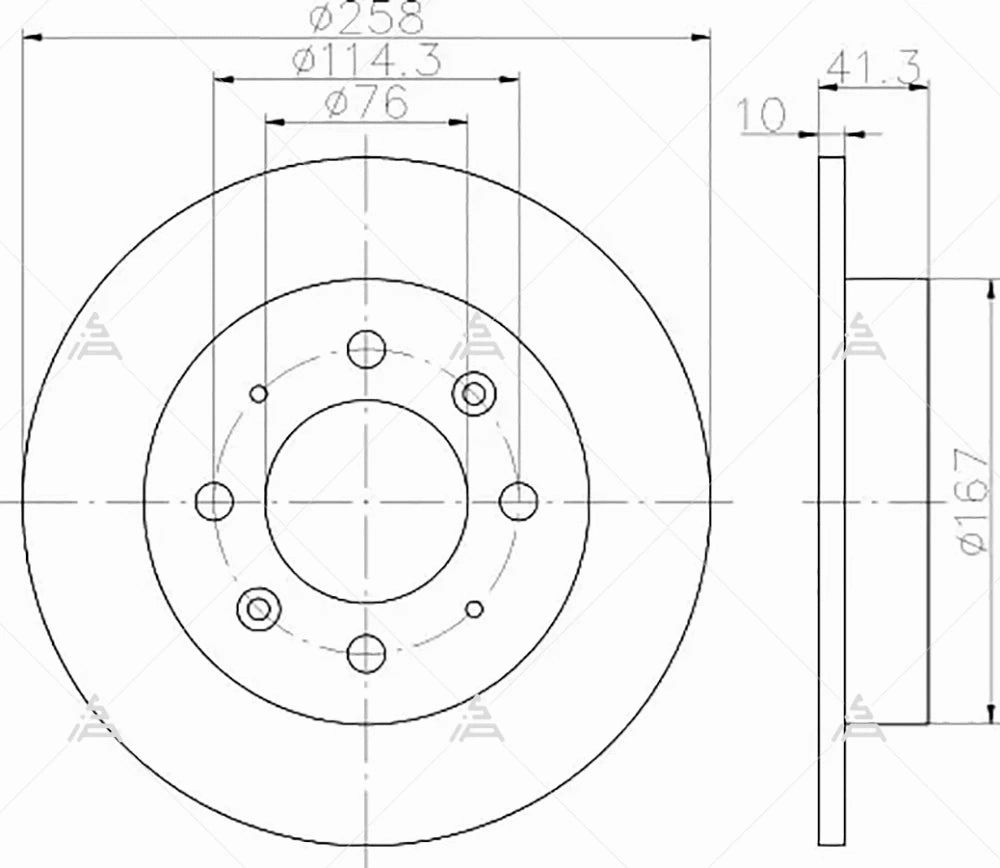

6.2pcs X Disc brake

We offer brake disc to fit with motor, u could use original brake calipers.

PCD: 4*114.3mm

CB: 76mm

10mm thickness

Drawing

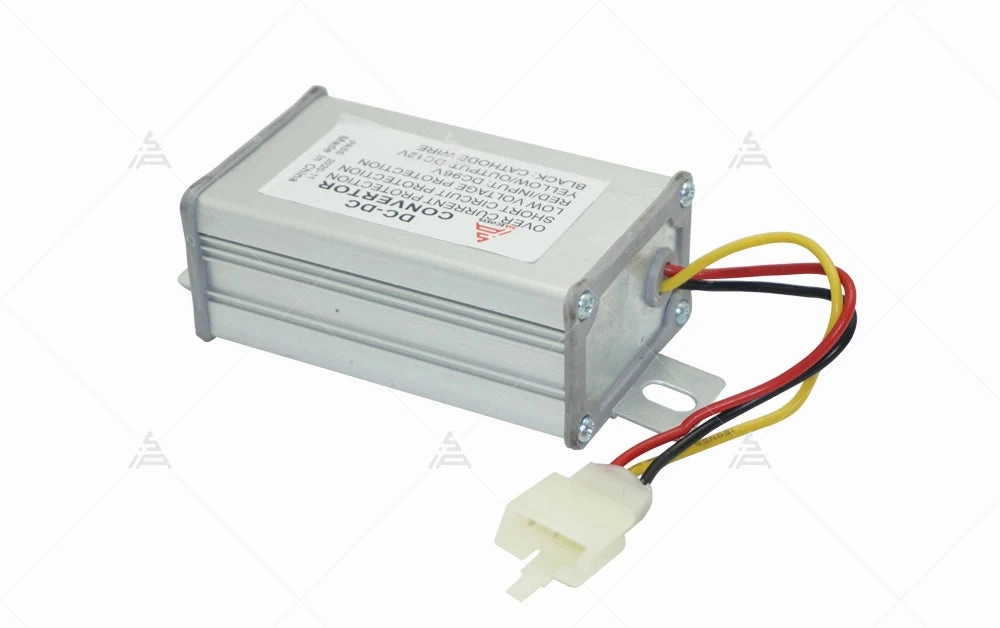

7.2pcs X DC DC converter 96V
