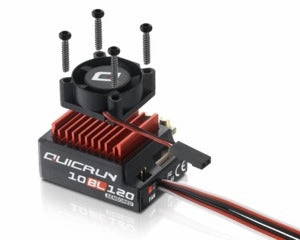

High performance, reliable, race-ready ESC. The compact size is suitable for various car chassis'. The built-in auto identification system recognizes sensored or sensorless brushless motors. Core competition program for excellent control feel & multiple programmable items.

8 steps of timing adjustments
4 steps of maximum brake force adjustments
8 steps of drag brake force adjustments
4 steps of initial brake force adjustments
9 steps of acceleration (punch) adjustment, from "soft" to "very aggressive" to fit for different kinds of cars, tires and tracks.

Multiple protections include:
Low voltage cut-off protection for Lipo or NiMH battery
Over-heat protection
Throttle signal loss protection
Motor Lock-up protection.

One-button to set the ESC, and easy to reset all parameters to the factory default settings. Compatible with optional device - the portable Digital LED Program Card which is especially convenient for outdoor use.

Motor Limits:
4-6 cells NiMH / 2S LiPo: 3.5T (1/10 On-road), 4.5T (1/10 Off-road)
8-9 cells NiMH / 3S LiPo: 8.5T (1/10 On-road), 10.5T (1/10 Off-road)

Specifications:
