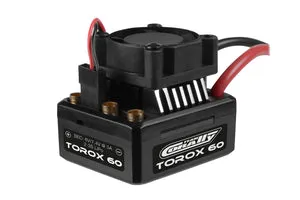

Torox 60-Brushless ESC, 2-3S: XP Versions
Max. Cont. Current (A): 60 A
Motor Limit: 2S LiPo = 6000 Kv (3652 size motor) 3S LiPo = 4000 Kv (3652 size motor)
Input Voltage (V) min. - max.: 5-12.6 V
Max. Current (A): 450 A
Length (mm): 39.4 mm
Nr of Li-xx Cells: 2-3S
Width (mm): 32.8 mm
Nr of Ni-xx Cells: 6-9 Cell NiMH
Motor Type: Sensored / Sensorless Brushless Motor (only in sensorless mode)
Height (mm): 23.1 mm (w/O Fan)
BEC Voltage (V): 6-7.4 V programmable
BEC Current (A): 3 A
Weight incl. wire (g): 72 g
Programmable: Yes
Programming Card: Hobbywing LED (optional)
Throttle Mode: Forward / Reverse programmable Reverse lockout
Drag Brake: 0-16% programmable
Battery Mode: NiMH/LiPo programmable
Lipo Cut off: programmable
Thermal Protection Temperature: 105 Degrees C
Water Protection: Yes
Cooling Fan: 25x25x10 mm
Connector (Motor): 3.5 mm female
Connector (Battery): T-connector
Battery wire size: 14 AWG
Car Type Use: 1/10th scale
